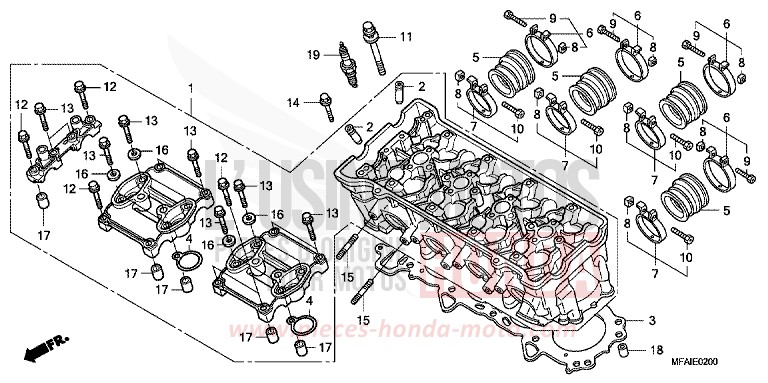

CYLINDER HEAD for CBF1000 PEARL SIENA RED (R320) from 2009

CYLINDER HEAD for CBF1000 PEARL SIENA RED (R320) from 2009
Reference
Product name
#1 12010-MFA-D00

HEAD ASSY, CYLINDER

Contact us
#2 12204-MFA-P00

GUIDE, VALVE (OS)

Price €38.58
#3 12251-MFA-D01

GASKET, CYLINDER HEAD

Price €99.10
#4 12395-MCJ-000

GASKET, PLUG HOLE

Price €7.96
#5 16211-MFA-D00

INSULATOR, THROTTLE BODY

Price €61.31
#6 16218-MAT-000

BAND B, INSULATOR

Price €14.74
#7 16218-MEE-000

BAND B, INSULATOR

Price €17.36
#8 16222-MV4-300

NUT, SQUARE, 5MM

Price €3.23
#9 90005-MM4-000

BOLT, RECESSED, 5X32

Price €3.35
#10 90006-MEE-000

BOLT, RECESSED, 5X30

Price €6.76
#11 90007-MEL-003

BOLT-WASHER, 9X105

Price €9.84
#12 90017-MA6-000

BOLT, FLANGE, 6X455

Price €6.08
#13 90019-MA6-000

BOLT, FLANGE, 6X395

Price €5.90
#14 90021-MFA-D00

BOLT, FLANGE, 6X45

Price €4.00
#15 90035-MM5-000

BOLT, STUD, 8X24

Price €8.80
#16 90463-ML7-000

WASHER, SEALING, 65MM

Price €5.84
#17 94301-08200

DOWEL PIN, 8X20

Price €2.02
#18 94301-10160

DOWEL PIN, 10X16

Price €2.33
#19 98059-58916

PLUG, SPARK (CR8EH9) (NGK)

Price €14.56
#19 98059-58926

PLUG, SPARK (U24FER9) (DENSO)

Price €11.15
