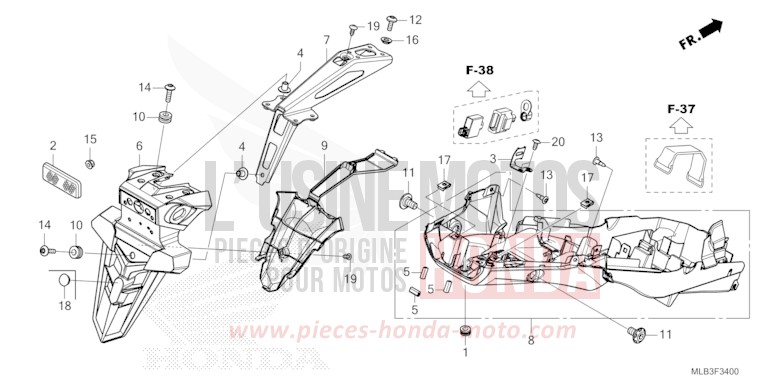

REAR FENDER for Hornet 750 MAT IRIDIUM GRAY METALLIC (NHC64) from 2023

REAR FENDER for Hornet 750 MAT IRIDIUM GRAY METALLIC (NHC64) from 2023
Reference
Product name
#1 19639-GBC-000

RUBBER OF MOUNTING

Price €3.31
#2 33741-MS6-921 i

CATADIOPTRE (STANLEY)

Price €42.14
#3 39571-MLB-D00

SUPPORT, CHARGEUR USB

Price €16.79
#4 61103-KRY-900 i

RING A, FRONT AILE

Price €3.28
#5 77212-MFJ-D00 i

GUMMISCHUTZ

Price €7.09
#6 80100-MKP-D00ZA

AILE A, REAR (WL) TYPE1

Price €41.38
#7 80102-MJW-J00

COMP. SUPPORT, AILE A

Price €66.23
# 80104-MLB-D80 i

FENDER ASSY B, RR

Price €237.60
#9 80106-MJW-J00

COVER OF FENDER REAR

Price €22.42
#10 83545-KCJ-690

SIDE COVER RUBBER

Price €3.96
#11 90115-MKP-J00

BOLT SPECIAL, 10X16

Price €4.44
#12 90116-MJM-D40

SPEZIALBOLT, 6X16

Price €5.59
#13 90116-SP0-003

CLIP OF GASKET SEALING OF BUMPER

Price €3.36
#14 90130-MKP-J00

CYLINDRICAL HEAD SCREW, 6X22

Price €3.97
#15 90301-MG8-000

FLANGE NUT, 5MM (FUSE RASHI)

Price €6.92
#16 90503-MJE-D40

BAND OF MOUNTING

Price €4.30
#17 90677-KAN-961 i

CLIP NUT, 5MM

Price €3.16
#19 93903-24380 i

SELF-TAPPING SCREW, 4X12

Price €1.21
#20 93903-25280

SELF-TAPPING SCREW, 5X12

Price €0.64
#8 80104-MLB-D00 i

ENS FENDER B AR

Price €237.60
