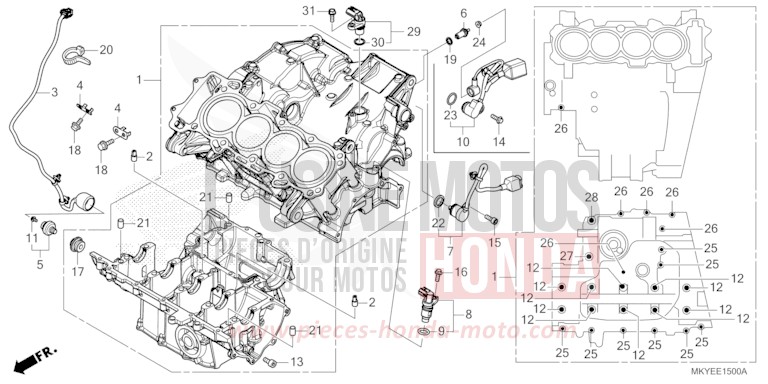

CRANKCASE for CB650R CANDY CHROMOSPHERE RED (R381) from 2024

CRANKCASE for CB650R CANDY CHROMOSPHERE RED (R381) from 2024
Reference
Product name
#1 11000-MKY-E20

CRANKCASE SET

Price €2,408.26
#2 11104-MJE-D00

ORIFICE, 12MM

Price €5.57
#3 32102-MKN-D10

SUB HARNESS, OIL PRESSURE

Price €13.76
#4 32159-MJE-D00

STAY, HARNESS CLIP

Price €5.00
#5 35500-MEH-661

SWITCH ASSY, OIL PRESSURE (DENSO)

Price €82.79
#6 35600-MKF-D41

SWITCH ASSY, NEUTRAL

Price €50.26
#8 37500-K0Z-D11

SENSOR ASSY, CRANK

Price €69.97
#9 37501-K2Y-J01

O-RING

Price €6.30
#10 38800-MKY-E21

SENSOR ASSY, ANGLE (350DEG)

Price €172.61
#11 90002-PA6-003

BOLT-WASHER, 4X8 (DENSO)

Price €6.14
#12 90004-MKY-E21

BOLT, UBS, 8X98

Price €5.08
#13 90010-MEL-000

BOLT, SOCKET, 8X12

Price €5.71
#14 90011-MGE-D00

BOLT, KNOCK, 6MM

Price €8.03
#16 90026-GHB-640

BOLT, FLANGE, 6X16

Price €5.46
#17 90048-MFL-000

BOLT, SEALING, 22MM

Price €25.46
#18 90101-MCZ-D00

BOLT, FLANGE, 6X14

Price €5.21
#19 90443-MJ6-000

WASHER, NEUTRAL

Price €5.02
#20 90651-KV6-003 i

BAND, WIRE, 165MM (BLACK)

Price €9.78
#21 90701-MV9-670

DOWEL PIN, 10X16

Price €7.63
#23 91310-MGE-D01

O-RING, 165X25

Price €14.00
#24 94050-04000 i

NUT, FLANGE, 4MM

Price €0.88
#25 95701-0603500 i

BOLT, FLANGE, 6X35

Price €1.34
#26 95701-0605000 i

BOLT, FLANGE, 6X50

Price €1.66
#27 95701-0804500 i

BOLT, FLANGE, 8X45

Price €1.74
#28 95701-1007500 i

BOLT, FLANGE, 10X75

Price €3.73
