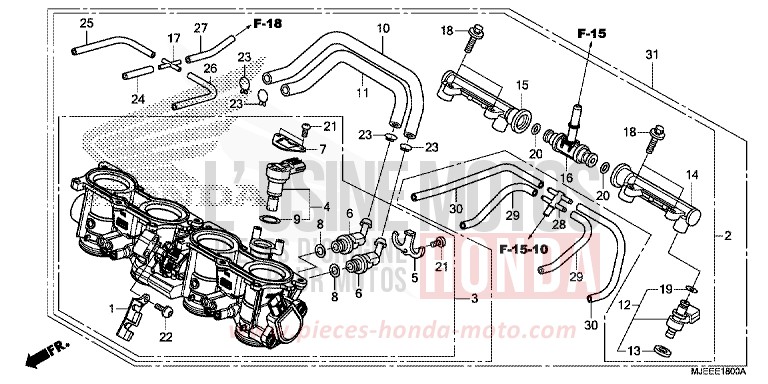

THROTTLE BODY for CB650F CANDY CHROMOSPHERE RED (R381) from 2018

THROTTLE BODY for CB650F CANDY CHROMOSPHERE RED (R381) from 2018
Reference
Product name
#1 16169-MEE-013 i

STAY, WIRE

Price €47.64
#3 16401-MJE-L01

BODY ASSY, THROTTLE

Price €479.65
#4 16431-MJP-G51

MOTOR ASSY

Price €297.94
#5 16431-MFJ-D01

PLATE, JOINT

Price €12.46
#6 16432-MFJ-D01

JOINT, IDLE AIR CONTROL VALVE

Price €23.59
#7 16433-MEW-921

PLATE, IDLE AIR CONTROL VALVE

Price €24.89
#8 16434-MFJ-D01

O-RING

Price €7.34
#9 16435-MFJ-D01

O-RING, 178X19

Price €7.34
#10 16440-MJE-D01

TUBE A

Price €78.92
#11 16441-MJE-D01

TUBE B

Price €78.92
#12 16450-MJE-D01 i

INJECTOR ASSY, FUEL

Price €80.98
#13 16472-KPC-D50

RING, SEAL

Price €6.80
#14 16610-MGC-D21

PIPE A, FUEL

Price €106.30
#15 16620-MGC-D21

PIPE, FUEL (B)

Price €106.30
#16 16630-MFJ-D00

T-JOINT, FUEL

Price €54.25
#17 17201-MCZ-003

JOINT, FOUR WAY

Price €20.62
#18 90021-MGZ-D02 i

BOLT, SHOULDER

Price €6.58
#19 91301-GGL-J01

O-RING, 63X22

Price €21.91
#20 91301-PLC-000

O-RING, 747X36

Price €5.29
#21 93500-040081H

SCREW, PAN, 4X8

Price €0.78
#22 93892-0501218 i

SCREW-WASHER, 5X12

Price €1.34
#23 95002-02139

CLIP, TUBE (B125)

Price €1.08
#24 95005-3505520 i

TUBE, 35X55 (95005-35001-20M)

Price €1.63
#25 95005-3509520 i

TUBE, 35X95 (95005-35001-20M)

Price €1.63
#26 95005-3512520

TUBE, 35X125 (95005-35001-20M)

Price €2.46
#27 95005-3514020 i

TUBE, 35X140 (95005-35001-20M)

Price €2.62
Contact us
#28 16180-ME5-761 i

T-JOINT

Price €36.74
#29 16196-MBW-L11 i

TUBE

Price €9.50
#30 16197-MFJ-L01

TUBE

Price €13.27
#31 16400-MJE-L01

BODY ASSY, THROTTLE (GQ8GB A)

Price €1,236.48
