KURBELGEHAEUSEABDECKUNG 🏍️ Hornet ABS
STARTING DRIVEN GEAR 🏍️ Hornet ABS

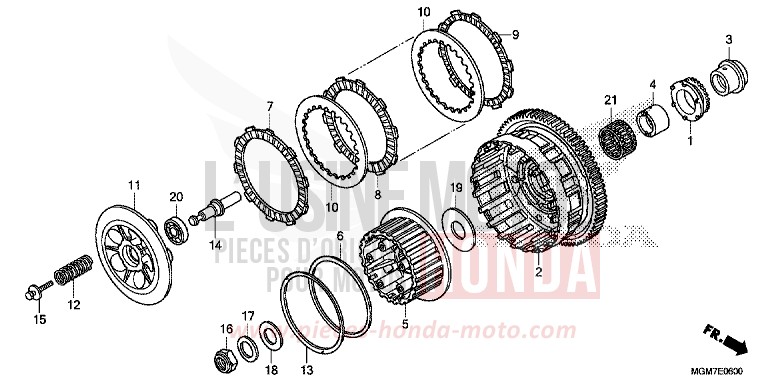

KUPPLUNG for Hornet ABS MAT CYNOS GRAY METALLIC (NH312) from 2013

KUPPLUNG for Hornet ABS MAT CYNOS GRAY METALLIC (NH312) from 2013
Reference
Product name
#1 15131-MAL-A01 i

SPROCKET, OIL PUMP DRIVE (26T)

Price €66.34
#2 22100-MFJ-D00

OUTER COMP, CLUTCH

Price €525.50
#3 22116-MEE-000

COLLAR, OIL PUMP SPROCKET

Price €48.91
#4 22118-MEE-000

GUIDE B, CLUTCH OUTER (2MM HOLE)

Price €45.29
#5 22120-MEE-000

CENTER, CLUTCH

Price €126.71
#6 22125-ML7-000

SEAT, JUDDER SPRING

Price €16.38
#7 22201-MAE-000 i

DISK, CLUTCH FRICTION

Price €19.18
#8 22201-MFJ-D00

DISK, CLUTCH FRICTION

Price €21.06
#9 22202-MAE-000 i

DISK B, CLUTCH FRICTION

Price €16.50
#10 22321-MAS-000

PLATE, CLUTCH

Price €18.35
#11 22350-MCJ-000

PLATE, CLUTCH PRESSURE

Price €73.28
#12 22401-MFG-D00

SPRING, CLUTCH

Price €8.45
#13 22402-MAS-E00

SPRING, JUDDER

Price €26.75
#14 22847-MFJ-D00

PIN, CLUTCH LIFTER

Price €38.89
#15 90024-MAS-000

BOLT-WASHER, 6X28

Price €5.71
#16 90231-MM5-000

NUT, LOCK, 22MM

Price €15.35
#17 90432-MM5-000

WASHER, SPRING, 22MM

Price €12.07
#18 90451-KG4-000

WASHER, THRUST, 22X39X2

Price €11.45
#19 90459-MM4-000

WASHER, 60X25X2

Price €14.40
#20 91009-MAS-003 i

BEARING, RADIAL BALL, 16003

Price €33.88
#21 91102-MEE-003

BEARING B, NEEDLE, 35X41X238 (WHITE)

Price €23.41
