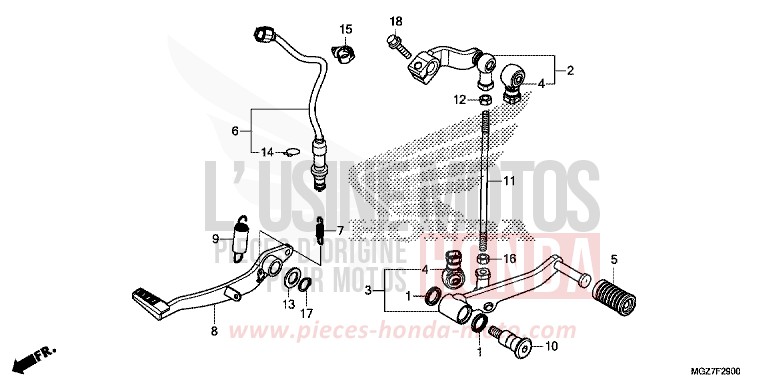

PEDAL for CB500X ABS CANDY RUBY RED (R4) from 2014

PEDAL for CB500X ABS CANDY RUBY RED (R4) from 2014
Reference
Product name
#1 24706-MK3-770

RUBBER, DUST SEAL

Price €8.72
#2 24710-MGZ-J00

ARM COMP, GEAR CHANGE

Price €46.73
#3 24720-MGZ-J00

PEDAL COMP, GEAR CHANGE

Price €94.01
#4 24724-MBW-D21

COVER, DUST

Price €16.73
#5 24781-KR3-770

RUBBER, GEAR CHANGE PEDAL

Price €8.78
#6 35350-MGZ-J01 i

SWITCH ASSY, RR STOP

Price €44.82
#7 35357-HP0-A00

SPRING, STOP SWITCH

Price €7.72
#8 46500-KYJ-900

PEDAL COMP, RR BRAKE

Price €108.10
#9 46513-KYJ-900

SPRING ASSY, BRAKE PEDAL

Price €4.56
#10 90113-MGZ-J00

BOLT, CHANGE PIVOT

Price €14.75
#11 90165-MGZ-J00

BOLT, TIE ROD

Price €8.86
#12 90301-MGZ-J00

NUT, SPECIAL, 6MM (LEFT HAND THREAD)

Price €5.16
#13 90557-230-000

WASHER, 152X25

Price €6.80
#14 90601-KAF-003

CLIP, SWITCH COVER

Price €6.23
#15 90683-SA0-003 i

CLIP, WIRE HARNESS, 25MM

Price €9.37
#16 94001-060700S i

NUT, HEX, 6MM

Price €0.88
#17 94511-15000

CIRCLIP, EXTERNAL, 15MM

Price €0.94
#18 95701-0602007 i

BOLT, FLANGE, 6X20

Price €1.15
