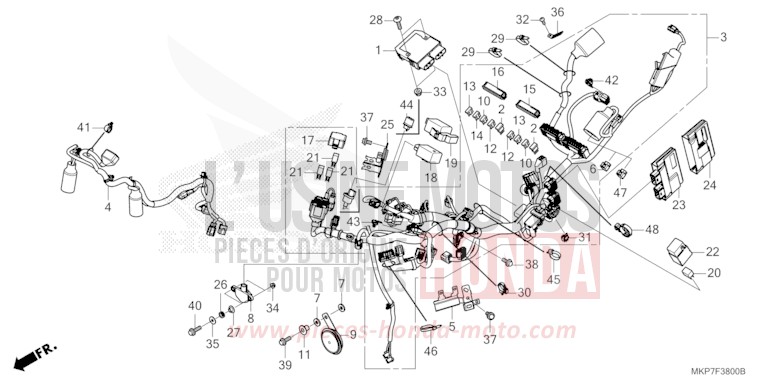

WIRE HARNESS for CB500X PEARL ORGANIC GREEN (GY157) from 2023

WIRE HARNESS for CB500X PEARL ORGANIC GREEN (GY157) from 2023
Reference
Product name
#1 31600-MKN-D51

ASSY. RECTIFICATEUR-REGULATOR

Price €245.41
#2 31730-MAS-601 i

DIODENEINHEIT, DREIWEG (SUMITOMO)

Price €22.76
#3 32100-MKP-DQ0

HARNESS, WIRE

Price €498.53
#4 32103-MKP-DQ0

SUB HARNESS, FR

Price €179.93
#5 32206-MGZ-J00

SUPPORT D'COUPLING

Price €14.23
#7 33714-KL3-620

RUBBER OF SUPPORT OF REAR LIGHT

Price €7.60
#8 35160-MGS-D31

SENSOREINHEIT, BOESCHUNGSWINKEL

Price €314.98
#9 38110-MGZ-J01

HORN COMP. (TOP)

Price €37.60
#10 38221-SNA-A31

FUSIBLE OF LAME (7.5A)

Price €6.85
#11 38117-KFE-701 i

RING, ADJUSTMENT KLAXON

Price €3.28
#12 38221-SNA-A41

FUSIBLE OF LAME (10A)

Price €6.85
#13 38221-SNA-A51

FUSIBLE OF LAME (15A)

Price €6.85
#14 38221-SNA-A81

FUSIBLE OF LAME (30A)

Price €6.85
#15 38255-MKP-T80

COVER COMP, UPPER

Price €28.42
#16 38256-MKP-T80

COVER COMP, UPPER

Price €28.42
#17 38281-MGZ-J01

COVER OF BOX OF RELAIS

Price €9.96
#18 38301-MKJ-D01

TURN SIGNAL RELAY COMP. (LED)

Price €96.88
#19 38306-MKP-D00

RUBBER D'DAMPER OF CENTER CLIGNOTANTE

Price €12.59
#21 38501-MKP-DN1 i

POWER RELAY COMP. (MICRO ISO 4P)

Price €7.66
#22 38506-KZZ-900

COVER, RELAY (2P)

Price €6.76
#23 38770-MKP-DQ2

PGM-FI UNIT

Price €575.00
#24 38774-MKP-D00

BUSHING, UNIT PGM-FI

Price €11.59
#25 50194-MGZ-J00

ARMATURE, BOX A RELAIS

Price €15.74
#26 64535-MFJ-D00

SIDE COVER RUBBER

Price €7.43
#27 90129-MGZ-J00

BAND, SENSOR ANGLE INCLINAISON SIDE

Price €4.88
#28 90135-K87-A00

CYLINDRICAL HEAD SCREW, 6X25

Price €3.97
#29 90652-KT1-771 i

WIRE BAND (BLACK)

Price €9.29
#30 90652-HC4-003 i

CLIP OF HARNESS

Price €8.45
#31 91535-STK-003

CLIP D'COUPLING (BLUE FONCE)

Price €11.84
#32 93903-24380 i

SELF-TAPPING SCREW, 4X12

Price €1.21
#33 94050-06070 i

FLANGE NUT, 6MM

Price €1.08
#34 94050-06080 i

FLANGE NUT, 6MM

Price €1.20
#35 94103-06800 i

WASHER PLATE, 6MM

Price €0.78
#36 94591-49000

PINCE, 4X90

Price €3.50
#37 95701-0601000 i

FLANGE BOLT, 6X10

Price €1.15
#38 95701-0601408 i

FLANGE BOLT, 6X14

Price €1.15
#39 95701-0602007 i

FLANGE BOLT, 6X20

Price €1.15
#40 95701-0602200 i

FLANGE BOLT, 6X22

Price €1.42
#41 90683-SA0-003 i

CLIP OF HARNESS ELECTRIC, 25MM

Price €9.37
#42 91535-TA0-003

CLIP D'COUPLING (BROWN FONCE)

Price €11.84
#43 91565-SEL-003

CLIP D'COUPLING (BLACK)

Price €6.83
#47 91771-MKK-H11

CAP, FAUX (6P) (ROUGE)

Price €24.54
#48 90651-MKP-DN1

CLIP OF HARNESS ELECTRIC

Price €5.35
