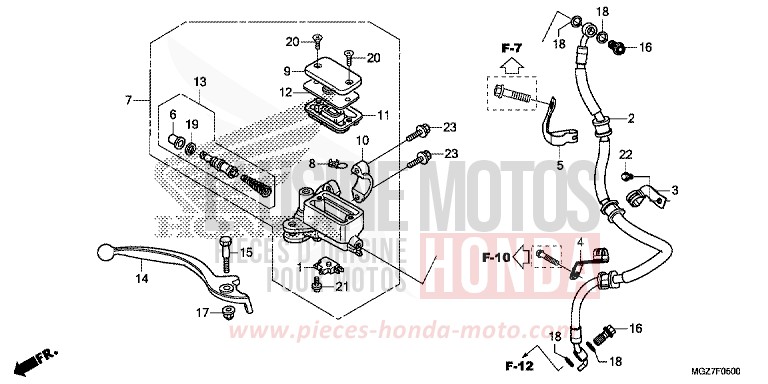

FRONT BRAKE MASTER CYLINDER (STD) for CB500X MAT PEARL SUMMIT WHITE (NHB57) from 2015

FRONT BRAKE MASTER CYLINDER (STD) for CB500X MAT PEARL SUMMIT WHITE (NHB57) from 2015
Reference
Product name
#1 35340-MGS-D31

SWITCH ASSY, FR STOP (ALPS)

Price €41.32
#2 45125-MGZ-J81

HOSE COMP, FR BRAKE

Price €135.88
#3 45155-MGZ-J00

CLAMPER A, FR BRAKE HOSE

Price €5.15
#4 45156-MGZ-J00

CLAMPER B, FR BRAKE HOSE

Price €6.94
#5 45157-MGZ-J40

CLAMPER C, FR BRAKE HOSE

Price €9.20
#6 45504-410-003

BOOT COMP

Price €15.22
#7 45510-MGZ-D02

CYLINDER SUB ASSY, FR BRAKE MASTER (NISSIN)

Price €267.84
#8 45512-MA6-006

PROTECTOR

Price €74.21
#9 45513-KK1-771

CAP, MASTER CYLINDER

Price €54.41
#10 45517-166-006

HOLDER, MASTER CYLINDER

Price €22.57
#11 45520-GE2-006

DIAPHRAGM

Price €32.06
#12 45521-K21-901

PLATE, DIAPHRAGM

Price €13.43
#13 45530-471-831

CYLINDER SET, MASTER

Price €83.28
#14 53175-KPP-T01

LEVER, R STEERING HANDLE

Price €29.26
#15 90114-166-006

BOLT, HANDLE LEVER PIVOT

Price €8.58
#16 90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

Price €13.14
#17 90202-KCW-870

NUT, CAP, 6MM

Price €5.93
#18 90545-300-000

WASHER, OIL BOLT

Price €6.41
#19 90651-MA5-671

CIRCLIP

Price €5.83
#20 93600-040121G

SCREW, FLAT, 4X12

Price €0.76
#21 93893-0401217

SCREW-WASHER, 4X12

Price €1.06
#22 96001-0601007

BOLT, FLANGE, 6X10

Price €1.06
#23 96001-0602207

BOLT, FLANGE, 6X22

Price €1.70
