CYLINDER HEAD COVER 🏍️ CB500X
CAMSHAFT/VALVE 🏍️ CB500X

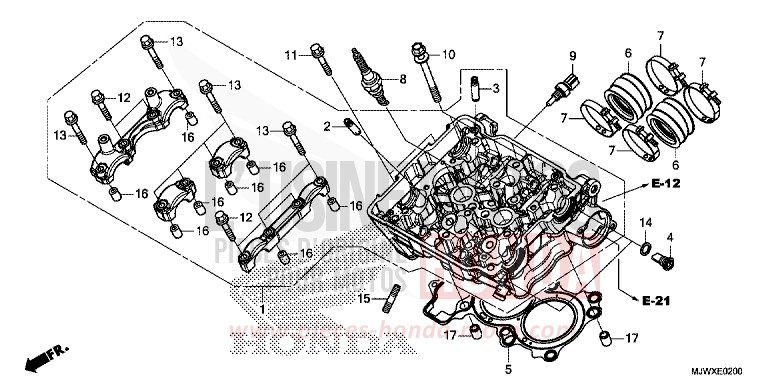

CYLINDER HEAD for CB500X MAT GUNPOWDER BLACK METALLIC (NH436) from 2018

CYLINDER HEAD for CB500X MAT GUNPOWDER BLACK METALLIC (NH436) from 2018
Reference
Product name
#1 12010-MJW-DK0

HEAD ASSY, CYLINDER

Price €1,841.78
#2 12204-KYJ-305

GUIDE, IN VALVE (OS) (EXHAUST SIDE)

Price €31.15
#3 12205-KYJ-305

GUIDE, EX VALVE (OS)

Price €31.15
#4 12207-MGZ-J00

BOLT, SEALING, 12MM

Price €10.44
#5 12251-MGZ-J01

GASKET, CYLINDER HEAD

Price €43.62
#6 16211-MGZ-J00

INSULATOR, THROTTLE BODY

Price €34.19
#7 16217-MGZ-J00

BAND, INSULATOR

Price €10.03
#8 31916-KRM-841

PLUG, SPARK (CPR8EA-9) (NGK)

Price €16.49
#9 37870-MGS-D31

SENSOR ASSY, WATER TEMPERATURE (NTCL)

Price €159.56
#10 90007-MGZ-J00

BOLT-WASHER, 9X100

Price €10.57
#11 90011-MGZ-J00

BOLT, FLANGE, 6X35

Price €3.74
#12 90017-KYJ-900

BOLT, FLANGE, 6X32

Price €3.74
#13 90019-KYJ-900

BOLT, FLANGE, 6X395

Price €3.74
#14 90418-KYJ-900

WASHER, 122X17X15

Price €3.96
#15 92900-080223E

BOLT, STUD, 8X22

Price €2.72
#16 94301-08140

DOWEL PIN, 8X14

Price €2.02
#17 94301-12160

PIN A, DOWEL, 12X16

Price €2.04
