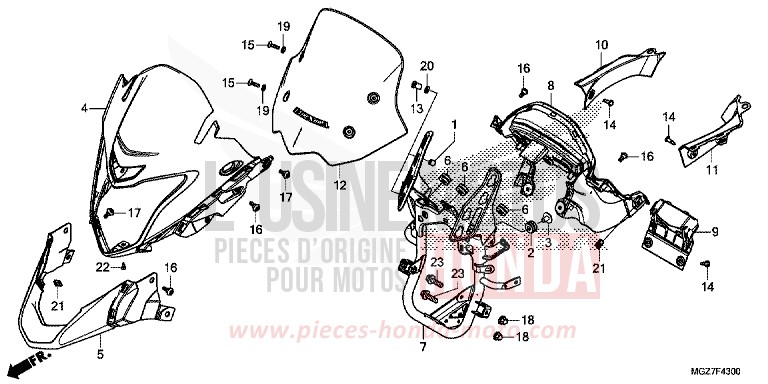

FRONT COWL for CB500X MAT GUNPOWDER BLACK METALLIC (NH436) from 2015

FRONT COWL for CB500X MAT GUNPOWDER BLACK METALLIC (NH436) from 2015
Reference
Product name
#1 12372-KGB-610

RUBBER B, HEAD SIDE COVER

Price €4.30
#2 17245-107-010

RUBBER, AIR CLEANER CASE MOUNTING

Price €10.81
#3 40521-437-000

COLLAR, CHAIN CASE TAIL

Price €3.19
#6 64216-GJ2-730

RUBBER, SCREEN SETTING

Price €6.41
#13 90111-KW3-003

NUT, COWL SETTING, 5MM

Price €7.72
#14 90116-MCS-G00

RIVET, PUSH

Price €3.98
#15 90117-MGZ-J80

SCREW, PAN, 5X20

Price €3.80
#16 90133-KPP-T00

SCREW, PAN, 6X14

Price €3.49
#17 90134-KPP-T00

SCREW, PAN, 5X14

Price €3.49
#18 90443-KTM-970

NUT, CAP, 8MM

Price €2.93
#19 90504-964-000

WASHER, THRUST, 5MM

Price €2.52
#20 90507-ZV1-000

WASHER, NYLON, 9MM

Price €1.87
#21 90677-KAN-T00

NUT, CLIP, 5MM

Price €6.54
#22 93903-24180

SCREW, TAPPING, 4X8

Price €0.62
#23 95801-0803200

BOLT, FLANGE, 8X32

Price €1.48
#4 64130-MGZ-J80

COVER, FR UPPER

Price €268.67
#5 64150-MGZ-J80

COVER, FR UNDER

Price €71.53
#7 64221-MGZ-J80

STAY COMP, FR COWL UPPER

Price €524.12
#8 64260-MGZ-J80

PANEL, METER

Price €90.66
#9 64261-MGZ-J80

LID, POSITION BULB

Price €13.04
#10 64270-MGZ-J80

PANEL, R INNER

Price €13.64
#11 64280-MGZ-J80

PANEL, L INNER

Price €13.82
#12 67110-MGZ-J80ZA

WINDSCREEN SET (WL) TYPE1 (TYPE1 )

Price €448.00
# 19010-MGZ-D41

RADIATOR COMP

Price €568.73
# 19014-KEA-003

NUT, SETTING (6MM)

Price €6.47
# 19015-MGZ-J01

SHROUD COMP

Price €22.09
# 19016-KEA-003

SCREW, PAN, 4X85

Price €5.90
# 19020-MGS-D31

FAN COMP, COOLING (TRAD)

Price €99.83
# 19037-MCA-G61

CAP COMP, RADIATOR (TRAD)

Price €62.52
# 19046-MCA-G61

LABEL, RADIATOR CAP (TRAD)

Price €12.17
# 19080-MGZ-J01

MOTOR ASSY, FAN (TRAD)

Price €274.18
# 19101-MGZ-J00

TANK, RADIATOR RESERVE

Price €31.34
# 19109-KBP-900

CAP, RESERVE TANK

Price €3.49
# 19126-MGZ-J00

RUBBER, HEAT GUARD

Price €45.58
# 19127-MGZ-J01

RUBBER, RR HEAT GUARD

Price €26.02
# 19501-MGZ-J00

HOSE, RADIATOR UPPER

Price €38.60
# 19502-MGZ-J00

HOSE, RADIATOR LOWER

Price €29.03
# 19531-MGZ-J00

CLIP, WATER HOSE (D27)

Price €4.96
# 19533-MGZ-J00

CLIP, WATER HOSE (D30)

Price €9.17
# 61102-KTY-D30

COLLAR, RADIATOR MOUNTING

Price €9.36
# 61304-415-000

RUBBER, HEADLIGHT CASE MOUNTING

Price €7.38
# 90120-KCR-003

BOLT-WASHER, 6X16

Price €8.38
# 90303-MGZ-J40

NUT, CLIP, 6MM

Price €5.10
# 90315-MFL-003

NUT, FLANGE, 3MM

Price €5.09
# 95002-02100

CLIP, TUBE (B10)

Price €1.06
# 95002-50000

CLIP, TUBE (C9)

Price €0.77
# 95005-5040030

TUBE, 5X400 (95005-50001-30M)

Price €16.39
Contact us
# 95005-5589020

TUBE (53X890)

Price €12.48
# 95701-0602207

BOLT, FLANGE, 6X22

Price €1.32
