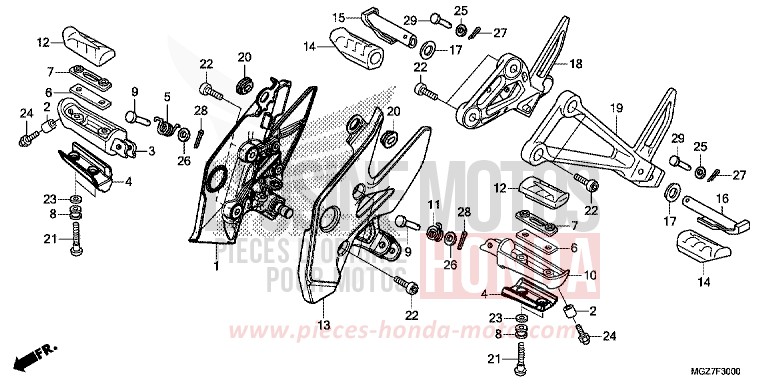

STEP for CB500X MAT GUNPOWDER BLACK METALLIC (NH436) from 2015

STEP for CB500X MAT GUNPOWDER BLACK METALLIC (NH436) from 2015
Reference
Product name
#1 50600-MGZ-J00

PORTE-REPOSE-PIEDS PRINCIPAL R.

Price €151.12
#2 50611-MGZ-J00

BAND, 12.7X8

Price €3.28
#3 50612-MER-D00

ARM OF REPOSE PIEDS R.

Price €183.10
#4 50615-MGZ-J00

PLATE, MARCHE LOWER

Price €25.79
#5 50617-445-840

SPRING OF RETURN OF FOOTREST R.

Price €8.78
#6 50618-MBG-D00

RUBBER, MARCHE LOWER

Price €10.93
#7 50619-MER-D00

PLATE, MARCHE

Price €4.31
#8 50622-MBG-D00

RUBBER, PLATE MARCHE LOWER

Price €7.60
#9 50639-ML0-010 i

PIN, BAR OF STEP

Price €3.97
#10 50642-MBG-D00

ARM OF REPOSE PIEDS L.

Price €175.08
#11 50644-445-840

SPRING OF RETURN OF FOOTREST L.

Price €9.23
#12 50661-KYJ-900

RUBBER OF REPOSE-PIEDS PRINCIPAL

Price €8.03
#13 50700-MGZ-J00

PORTE-REPOSE-PIEDS PRINCIPAL L.

Price €140.47
#14 50710-KYJ-900

RUBBER OF STEP SELLE REAR

Price €5.86
#15 50711-KET-600

BAR OF STEP SELLE REAR R.

Price €13.92
#16 50712-KET-600

BAR OF STEP SELLE REARG.

Price €13.92
#17 50714-KBA-930

PLATE SIDE OF SEAT STEP REAR

Price €4.03
#18 50715-MGZ-J00

SUPPORT OF STEP SEAT REAR R.

Price €91.20
#19 50725-MGZ-J00

SUPPORT OF STEP SEAT L.

Price €88.38
#20 64266-MG9-770

RING OF PANNEAU D'HAUTE- PARLEUR

Price €10.25
#21 90115-MBG-D00

BOLT, PLATE MARCHE LOWER

Price €13.19
#22 90116-MGZ-J00

BOLT OF SOCKET, 8X22

Price €2.98
#23 90483-MER-D00

WASHER PLATE, 5MM

Price €2.35
#24 92501-080160A i

BOLT OF CAP, 8X16

Price €2.86
#25 94101-06000 i

PLAIN WASHER, 6MM

Price €0.82
#26 94102-08000

PLAIN WASHER, 8MM

Price €1.24
#27 94201-16150 i

SPLIT PIN, 1.6X15

Price €0.78
#28 94201-20150 i

SPLIT PIN, 2.0X15

Price €0.78
#29 95015-82000

PIN B OF STEP SELLE REAR

Price €3.19
# 24706-MK3-770

RUBBER OF CACH-POUSSIERE

Price €8.72
# 24710-MGZ-J00

ARM COMP. CHANGE SPEED

Price €46.73
# 24720-MGZ-J00

PEDAL COMP. OF SELECTION OF SPEED

Price €94.01
# 24724-MBW-D21

COVER-POUSSIERE

Price €16.73
# 24781-KR3-770

RUBBER, GANGSCHALTPEDAL

Price €8.78
# 35350-MGZ-J01 i

ASSY. SWITCH REVERSE

Price €44.82
# 35357-HP0-A00

STOP SWITCH SPRING

Price €7.72
# 46500-KYJ-900

PEDAL COMP. BRAKE REAR

Price €108.10
# 46513-KYJ-900

ASSY. OF SPRING OF PEDAL OF BRAKE

Price €4.56
# 90113-MGZ-J00

BOLT OF PIVOT OF CHANGE

Price €14.75
# 90165-MGZ-J00

BOLT OF BAR D'COUPLING

Price €8.86
# 90301-MGZ-J00

NUT SPECIAL, 6MM (LEFT HAND THREAD)

Price €5.16
# 90557-230-000

WASHER, 15.2X25

Price €6.80
# 90601-KAF-003

CLIP, SWITCH COVER

Price €6.23
# 90683-SA0-003 i

CLIP OF HARNESS ELECTRIC, 25MM

Price €9.37
# 94001-060700S i

NUT HEX., 6MM

Price €0.88
# 94511-15000

CIRCLIP OUTER, 15MM

Price €0.94
# 95701-0602007 i

FLANGE BOLT, 6X20

Price €1.15
