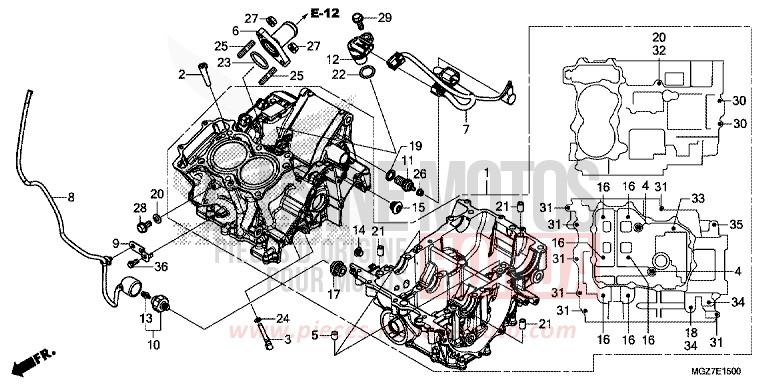

CRANKCASE for CB500X MAT GUNPOWDER BLACK METALLIC (NH436) from 2014

CRANKCASE for CB500X MAT GUNPOWDER BLACK METALLIC (NH436) from 2014
Reference
Product name
#1 11000-MGZ-J80

CRANKCASE SET

Price €2,664.19
#1 11000-MGZ-J81

CRANKCASE SET

Price €2,664.19
#2 11103-MGZ-J00

PIN, PARTITION

Price €5.33
#3 11140-MGZ-J00

JET COMP, OIL

Price €34.19
#4 12207-KYJ-900

BOLT, SEALING, 12MM

Price €9.14
#5 15515-MGZ-J00

ORIFICE A, 10MM

Price €12.59
#6 19060-MGZ-J80

JOINT, WATER

Price €24.12
#7 32101-MGZ-J00

SUB HARNESS, ENGINE

Price €236.20
#8 32102-MGZ-J00

SUB HARNESS, OIL PRESSURE

Price €32.02
#9 32157-MGZ-J00

STAY, HARNESS CLIP

Price €3.34
#10 35500-MEH-661

SWITCH ASSY, OIL PRESSURE (DENSO)

Price €91.68
#11 35600-MK4-860

SWITCH ASSY, NEUTRAL

Price €35.48
#12 37700-KZR-601

SENSOR ASSY, SPEED (TDK-EPC)

Price €105.59
#13 90002-PA6-003

BOLT-WASHER, 4X8 (DENSO)

Price €3.80
#14 90005-MAZ-000

BOLT, SOCKET, 10MM

Price €5.12
#15 90009-MGZ-J00

BOLT, SOCKET, 10MM

Price €9.07
#16 90015-MGZ-J01

BOLT, UBS, 8X105

Price €12.08
#17 90048-MY5-600

BOLT, SEALING, 18MM

Price €13.78
#18 90442-028-000

WASHER, SEALING, 8MM

Price €3.34
#19 90443-MJ6-000

WASHER, NEUTRAL

Price €3.89
#20 90463-ML7-000

WASHER, SEALING, 65MM

Price €5.84
#21 90701-MV9-670

DOWEL PIN, 10X16

Price €7.90
#22 91303-KF0-003

O-RING, 148X24 (ARAI)

Price €5.46
#23 91304-MCP-900

O-RING, 23X24

Price €6.12
#24 91305-MCJ-751

O-RING, 32X11

Price €3.01
#25 92900-060160E

BOLT, STUD, 6X16

Price €1.94
#26 94050-04000

NUT, FLANGE, 4MM

Price €0.86
#27 94050-06000

NUT, FLANGE, 6MM

Price €0.78
#28 95701-0601200

BOLT, FLANGE, 6X12

Price €1.13
#29 95701-0601800

BOLT, FLANGE, 6X18

Price €1.13
#30 95701-0603500

BOLT, FLANGE, 6X35

Price €1.32
#31 95701-0604008

BOLT, FLANGE, 6X40

Price €1.32
#32 95701-0609500

BOLT, FLANGE, 6X95

Price €3.00
#33 95701-0805500

BOLT, FLANGE, 8X55

Price €2.81
#34 95701-0807500

BOLT, FLANGE, 8X75

Price €3.00
#35 95701-1007500

BOLT, FLANGE, 10X75

Price €3.66
#36 96001-0601407

BOLT, FLANGE, 6X14

Price €1.32
