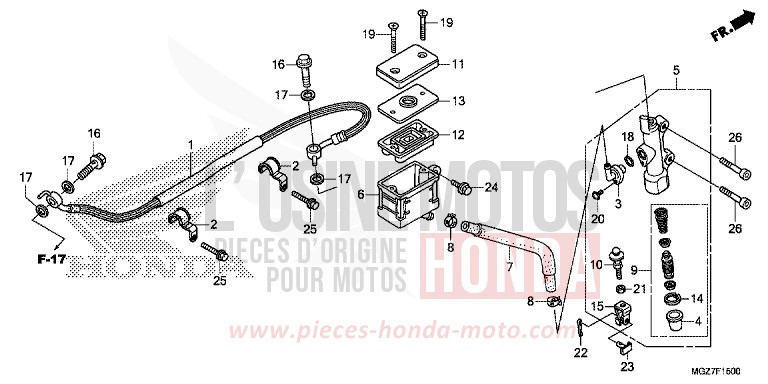

REAR BRAKE MASTER CYLINDER (STD) for CB500X MAT GUNPOWDER BLACK METALLIC (NH436) from 2013

REAR BRAKE MASTER CYLINDER (STD) for CB500X MAT GUNPOWDER BLACK METALLIC (NH436) from 2013
Reference
Product name
#1 43310-MGZ-J01

HOSE COMP, RR BRAKE

Price €112.43
#2 43468-MGZ-J00

GUIDE, RR BRAKE HOSE

Price €6.92
#3 43503-MER-D01

CONNECTOR, MASTER CYLINDER

Price €20.23
#4 43504-MB2-006

BOOT COMP

Price €13.19
#5 43510-MGZ-D01

CYLINDER SUB ASSY, RR BRAKE MASTER (NISSIN)

Price €218.62
#6 43511-KV3-831

CUP COMP, OIL

Price €52.86
#7 43512-MGZ-J01

HOSE COMP, RR BRAKE MASTER CYLINDER

Price €24.83
#8 43514-KS6-701

CLAMP, MASTER CYLINDER OIL HOSE

Price €15.61
#9 43520-MJ6-315

PISTON SET, MASTER CYLINDER (NISSIN)

Price €97.67
#10 43530-KV3-701

ROD COMP, PUSH

Price €57.70
#11 45513-KK1-771

CAP, MASTER CYLINDER

Price €54.41
#12 45520-MG7-006

DIAPHRAGM

Price €24.06
#13 45521-HA2-006

PLATE, DIAPHRAGM

Price €13.94
#14 46182-MEL-D21

CIRCLIP

Price €5.16
#15 46504-KV6-702

JOINT, BRAKE ROD

Price €8.86
#16 90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

Price €13.14
#17 90545-300-000

WASHER, OIL BOLT

Price €6.41
#18 91212-422-006

O-RING, 148X24

Price €5.78
#19 93600-040401G

SCREW, FLAT, 4X40

Price €0.62
#20 93893-0401217

SCREW-WASHER, 4X12

Price €1.06
#21 94002-080000S

NUT, HEX, 8MM

Price €1.04
#22 94201-20150

PIN, SPLIT, 20X15

Price €0.77
#23 95015-54000

PIN D, JOINT

Price €2.94
#24 96001-0601407

BOLT, FLANGE, 6X14

Price €1.32
#25 96001-0601807

BOLT, FLANGE, 6X18

Price €1.22
#26 96600-0602000

BOLT, SOCKET, 6X20

Price €1.22
