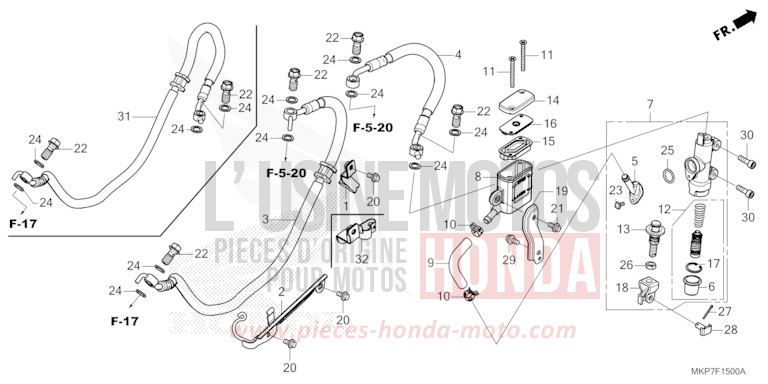

REAR BRAKE MASTER CYLINDER for CB500X GRAND PRIX RED (R380) from 2023

REAR BRAKE MASTER CYLINDER for CB500X GRAND PRIX RED (R380) from 2023
Reference
Product name
#2 43156-MKP-J00

STAY B, RR BRAKE

Price €32.23
#4 43313-MKP-DN1

HOSE COMP B, RR BRAKE

Price €87.79
#5 43503-MN5-006

CONNECTOR, MASTER CYLINDER (NISSIN)

Price €18.29
#6 43504-MB2-006

BOOT COMP

Price €13.19
#7 43510-MKP-D81

CYLINDER SUB ASSY, RR BRAKE MASTER (NISSIN)

Price €202.76
#8 43511-MKP-J01

CUP COMP, OIL

Price €34.63
#9 43512-MKP-J01

HOSE, RR MASTER CYLINDER

Price €15.78
#10 43514-KS6-701

CLAMP, MASTER CYLINDER OIL HOSE

Price €15.61
#11 43516-KYJ-901

SCREW, FLAT, 4X60

Price €3.49
#12 43520-MB2-315

PISTON SET, MASTER CYLINDER (NISSIN)

Price €98.35
#13 43530-KV3-701

ROD COMP, PUSH

Price €57.70
#14 45513-K33-D01

CAP, MASTER CYLINDER

Price €31.72
#15 45520-GW0-911

DIAPHRAGM

Price €23.20
#16 45521-GW0-911

PLATE, DIAPHRAGM

Price €13.79
#17 46182-MEL-D21

CIRCLIP

Price €5.16
#18 46504-KV6-702

JOINT, BRAKE ROD

Price €8.86
#19 50279-MKP-J00

STAY, OIL CUP

Price €15.43
#20 90013-GHB-600

BOLT, FLANGE, 6X10

Price €5.36
#21 90013-GHB-610

BOLT, FLANGE, 6X12

Price €5.98
#22 90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

Price €13.14
#23 90508-K21-921

SCREW-WASHER, 4X12

Price €3.49
#24 90545-300-000

WASHER, OIL BOLT

Price €6.41
#25 91212-422-006

O-RING, 148X24

Price €5.78
#26 94002-080000S

NUT, HEX, 8MM

Price €1.04
#27 94201-20150

PIN, SPLIT, 20X15

Price €0.77
#28 95015-54000

PIN D, JOINT

Price €2.94
#29 95701-0601207

BOLT, FLANGE, 6X12

Price €1.13
#30 96600-0602000

BOLT, SOCKET, 6X20

Price €1.22
#32 43155-MKP-DN0

CLAMPER A, RR BRAKE

Price €9.31
#3 43310-MKP-DQ1

HOSE COMP A, RR BRAKE

Price €117.77
