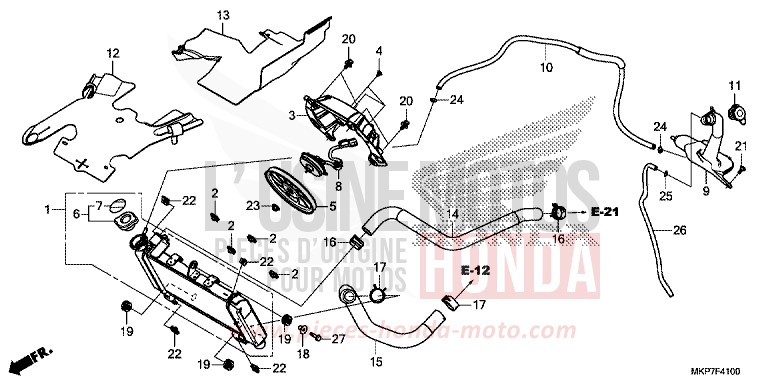

RADIATOR for CB500X GRAND PRIX RED (R380) from 2022

RADIATOR for CB500X GRAND PRIX RED (R380) from 2022
Reference
Product name
#2 19014-KEA-003

NUT, SETTING (6MM)

Price €6.47
#3 19015-MGZ-J01

SHROUD COMP

Price €22.09
#4 19016-KEA-003

SCREW, PAN, 4X85

Price €5.90
#5 19020-MGS-D31

FAN COMP, COOLING (TRAD)

Price €99.83
#6 19037-MCA-G61

CAP COMP, RADIATOR (TRAD)

Price €62.52
#7 19046-MCA-G61

LABEL, RADIATOR CAP (TRAD)

Price €12.17
#8 19080-MKP-A01

MOTOR ASSY, FAN

Price €303.34
#9 19101-MGZ-J00

TANK, RADIATOR RESERVE

Price €31.34
#10 19102-MJW-J00

TUBE, RESERVE TANK

Price €34.30
#11 19109-KBP-900

CAP, RESERVE TANK

Price €3.49
#12 19126-MKP-J00

RUBBER, HEAT GUARD

Price €18.52
#13 19127-MKP-J00

RUBBER, RR HEAT GUARD

Price €20.98
#14 19501-MKP-D00

HOSE, RADIATOR UPPER

Price €34.15
#15 19502-MKP-D00

HOSE, RADIATOR LOWER

Price €34.81
#16 19531-MJW-J00

CLIP, WATER HOSE (D27)

Price €5.33
#17 19533-MJW-J00

CLIP, WATER HOSE (D30)

Price €7.16
#18 61102-KTY-D30

COLLAR, RADIATOR MOUNTING

Price €9.36
#19 61304-415-000

RUBBER, HEADLIGHT CASE MOUNTING

Price €7.38
#20 90120-KCR-003

BOLT-WASHER, 6X16

Price €8.38
#21 90134-KPP-T00

SCREW, PAN, 5X14

Price €3.49
#22 90303-MGZ-J40

NUT, CLIP, 6MM

Price €5.10
#23 90315-MFL-003

NUT, FLANGE, 3MM

Price €5.09
#24 95002-02100

CLIP, TUBE (B10)

Price €1.06
#25 95002-50000

CLIP, TUBE (C9)

Price €0.77
#26 95005-5040030

TUBE, 5X400 (95005-50001-30M)

Price €16.39
Contact us
#27 95701-0602207

BOLT, FLANGE, 6X22

Price €1.32
#1 19010-MKP-DQ1

RADIATOR COMP

Price €582.97
