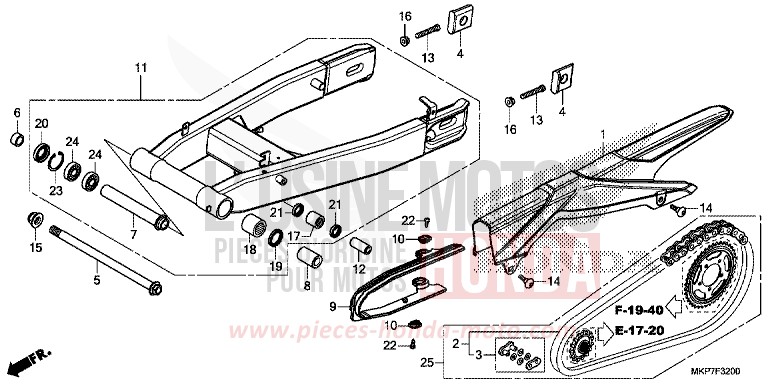

SWINGARM (CB400XAK,CB500X,CB500XAK/L/M) for CB500X GRAND PRIX RED (R380) from 2021

SWINGARM (CB400XAK,CB500X,CB500XAK/L/M) for CB500X GRAND PRIX RED (R380) from 2021
Reference
Product name
#1 40510-MJW-J00

CASE, DRIVE CHAIN

Price €32.18
#2 40540-K87-A02

CHAIN, DRIVE (RK) (RK520KLO2-120LJFZ) (STANDARD...

Price €183.08
#2 40540-KYJ-902 i

CHAIN OF CONTROL (DAIDO) (DID520VF-120ZB)

Price €223.68
#3 40531-K87-A01

JOINT, DRIVE CHAIN (RK)

Price €32.92
#3 40545-KYJ-902 i

GASKET OF CHAIN OF CONTROL (DAIDO)

Price €23.30
#4 42305-MKP-J00

BAND PIN REAR

Price €24.32
#5 52101-MGZ-J00

BOLT, PIVOT OF ARM OSCILLANT

Price €29.04
#6 52105-MJ0-000

REAR FORK PIVOT BAND

Price €10.82
#7 52141-MGZ-J00

ENTRETOISE, AXE CENTRAL

Price €17.41
#8 52143-MGZ-J00

COLLET, DISTANCE OF CENTRE OF ROTATION, L.

Price €15.13
#9 52170-MKP-J00

SLIDER, CHAIN

Price €16.78
#10 52171-KR6-000 i

WASHER OF CONLISSEAU OF CHAIN

Price €6.13
#11 52200-MKP-J00

SWINGARM SUB ASSY, RR

Price €546.76
#12 52463-MGZ-J00

BAND OF CUSHION OF CONNECTING ROD

Price €10.32
#13 90106-MCF-D00

BOLT HEX., 8X50

Price €6.46
#14 90115-MGZ-J00

SPECIAL SCREW, 6X14

Price €3.97
#15 90305-KCJ-951

NUT U, 14MM (FUJI SEIMITSU)

Price €7.32
#16 90309-357-000 i

NUT HEX., 8MM

Price €11.54
#17 91071-KV3-005 i

NEEDLE BEARING (KOYO)

Price €26.09
#18 91071-MT7-003

NEEDLE BEARING (NTN)

Price €23.69
#19 91202-MAL-601

COVER-POUSSIERE, 25X33X4

Price €7.54
#20 91213-MB2-006 i

COVER-POUSSIERE, 22X35X7 (NOK)

Price €8.64
#21 91262-KV3-831 i

STAUBGASKET, 17X24X5 (ARAI)

Price €7.37
#22 93901-25280

SELF-TAPPING SCREW, 5X12

Price €0.78
#23 94520-35000

INNENSPRENGRING, 35MM

Price €1.74
#24 96100-6202010

RADIAL BALL BEARING, 6202

Price €13.20
#25 06406-MKP-D80

CHAIN KIT, DRIVE (520-15&amp41T) (STANDARD LINK...

Price €271.42
