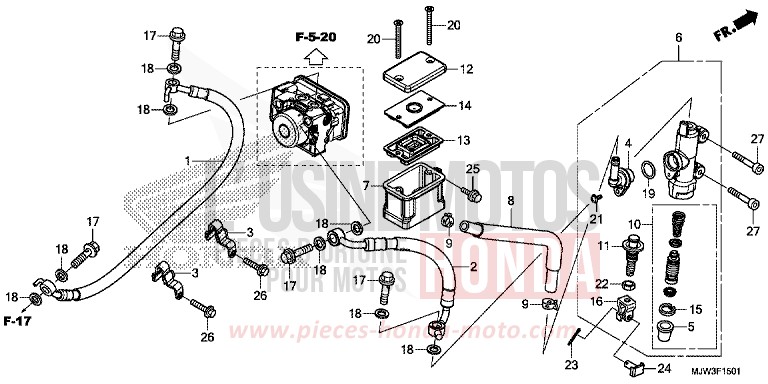

REAR BRAKE MASTER CYLINDER (CB500XA/CB400XA) for CB500X CANDY ROSY RED (R340) from 2017

REAR BRAKE MASTER CYLINDER (CB500XA/CB400XA) for CB500X CANDY ROSY RED (R340) from 2017
Reference
Product name
#1 43310-MGZ-J11

COMP. HOSE A, REAR BRAKE

Price €47.77
#2 43313-MJW-J11

HOSE COMP B, RR BRAKE

Price €45.78
#3 43468-MGZ-J10

GUIDE, DUCT SOUPLE OF BRAKE REAR

Price €4.97
#4 43503-MER-D01

CONNECTION, HAUPTCYLINDER

Price €20.87
#5 43504-MB2-006 i

BOOT COMP.

Price €13.37
#6 43510-MGZ-D01

SOUS-ASSY. MAITRE-CYLINDER, BRAKE REAR (NISSIN)

Price €123.68
#7 43511-KV3-831 i

OIL CUP COMP.

Price €50.93
#8 43512-MGZ-J01

PIPE COMP. OF MAITRE-CYLINDREDE BRAKE REAR

Price €19.04
#9 43514-KS6-701 i

CLIP OF HOLE OIL OF MASTER CYLINDER

Price €23.64
#10 43520-MJ6-315 i

SET OF PISTON OF MAITRE CYLINDER (NISSIN)

Price €104.66
#11 43530-KV3-701

ROD COMP. POUSSE

Price €46.37
#12 45513-KK1-771 i

CAP, HAUPTCYLINDER

Price €39.60
#13 45520-MG7-006 i

MEMBRANE

Price €19.44
#14 45521-HA2-006 i

PLATE, MEMBRANE

Price €18.22
#15 46182-MEL-D21

VISSERIE

Price €7.36
#16 46504-KV6-702 i

GASKET OF CALIPER OF BRAKE

Price €12.42
#17 90145-MS9-612 i

BOLT OIL, 10X22 (SAGA)

Price €16.85
#18 90545-300-000 i

WASHER OF BOLT OIL

Price €5.30
#19 91212-422-006 i

O-RING, 14.8X2.4

Price €6.53
#20 93600-040401G

FLACHKOPFBOLT, 4X40

Price €0.64
#21 93893-0401217 i

SCREW A HEAD A WASHER, 4X12

Price €1.08
#22 94002-080000S i

NUT HEX., 8MM

Price €1.07
#23 94201-20150 i

SPLIT PIN, 2.0X15

Price €0.78
#24 95015-54000 i

AXE D, ARTICULATION

Price €3.00
#25 96001-0601407 i

FLANGE BOLT, 6X14

Price €1.34
#26 96001-0601807 i

FLANGE BOLT, 6X18

Price €1.25
#27 96600-0602000 i

BOLT OF SOCKET, 6X20

Price €1.25
