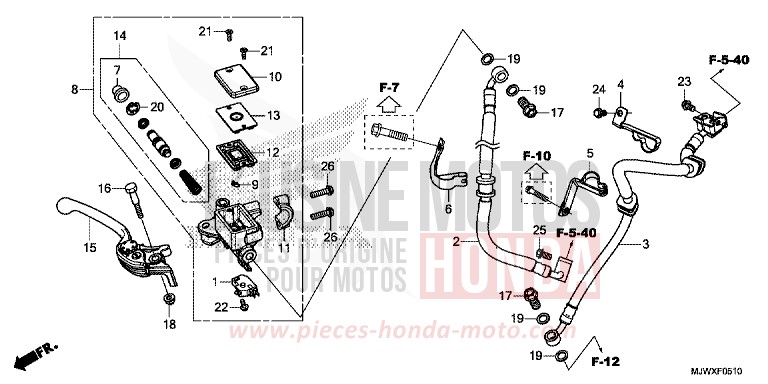

FRONT BRAKE MASTER CYLINDER (CB500XA/CB400XA) for CB500X CANDY CHROMOSPHERE RED (R381) from 2018

FRONT BRAKE MASTER CYLINDER (CB500XA/CB400XA) for CB500X CANDY CHROMOSPHERE RED (R381) from 2018
Reference
Product name
#1 35340-MGS-D31

SWITCH ASSY, FR STOP (ALPS)

Price €41.32
#2 45125-MJW-J91

HOSE COMP A, FR BRAKE

Price €66.92
#3 45126-MJW-J11

HOSE COMP B, FR BRAKE

Price €144.90
#4 45155-MGZ-J10

CLAMPER A, FR BRAKE HOSE

Price €9.38
#5 45156-MGZ-J10

CLAMPER B, FR BRAKE HOSE

Price €9.17
#6 45157-MGZ-J40

CLAMPER C, FR BRAKE HOSE

Price €9.20
#7 45504-410-003

BOOT COMP

Price €15.22
#8 45510-MGZ-D02

CYLINDER SUB ASSY, FR BRAKE MASTER (NISSIN)

Price €267.84
#9 45512-MA6-006

PROTECTOR

Price €74.21
#10 45513-KK1-771

CAP, MASTER CYLINDER

Price €54.41
#11 45517-166-006

HOLDER, MASTER CYLINDER

Price €22.57
#12 45520-GE2-006

DIAPHRAGM

Price €32.06
#13 45521-K21-901

PLATE, DIAPHRAGM

Price €13.43
#14 45530-471-831

CYLINDER SET, MASTER

Price €83.28
#15 53170-MJW-J01

LEVER ASSY, R HANDLE

Price €80.03
#16 90114-166-006

BOLT, HANDLE LEVER PIVOT

Price €8.58
#17 90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

Price €13.14
#18 90202-KCW-870

NUT, CAP, 6MM

Price €5.93
#19 90545-300-000

WASHER, OIL BOLT

Price €6.41
#20 90651-MA5-671

CIRCLIP

Price €5.83
#21 93600-040121G

SCREW, FLAT, 4X12

Price €0.76
#22 93893-0401217

SCREW-WASHER, 4X12

Price €1.06
#23 95701-0601007

BOLT, FLANGE, 6X10

Price €0.97
#24 96001-0601007

BOLT, FLANGE, 6X10

Price €1.06
#25 96001-0601207

BOLT, FLANGE, 6X12

Price €1.22
#26 96001-0602207

BOLT, FLANGE, 6X22

Price €1.70
