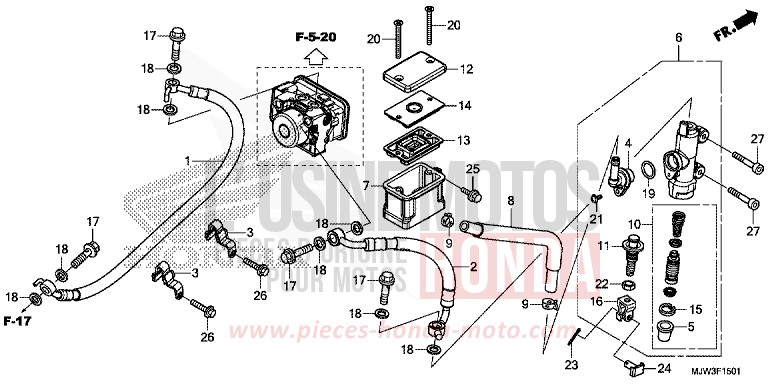

REAR BRAKE MASTER CYLINDER (CB500XA/CB400XA) for CB500X ASTEROID BLACK METALLIC (NHA35) from 2016

REAR BRAKE MASTER CYLINDER (CB500XA/CB400XA) for CB500X ASTEROID BLACK METALLIC (NHA35) from 2016
Reference
Product name
#1 43310-MGZ-J11

HOSE COMP A, RR BRAKE

Price €111.04
#2 43313-MJW-J11

HOSE COMP B, RR BRAKE

Price €104.81
#3 43468-MGZ-J10

GUIDE, RR BRAKE HOSE

Price €24.46
#4 43503-MER-D01

CONNECTOR, MASTER CYLINDER

Price €20.23
#5 43504-MB2-006

BOOT COMP

Price €13.19
#6 43510-MGZ-D01

CYLINDER SUB ASSY, RR BRAKE MASTER (NISSIN)

Price €218.62
#7 43511-KV3-831

CUP COMP, OIL

Price €52.86
#8 43512-MGZ-J01

HOSE COMP, RR BRAKE MASTER CYLINDER

Price €24.83
#9 43514-KS6-701

CLAMP, MASTER CYLINDER OIL HOSE

Price €15.61
#10 43520-MJ6-315

PISTON SET, MASTER CYLINDER (NISSIN)

Price €97.67
#11 43530-KV3-701

ROD COMP, PUSH

Price €57.70
#12 45513-KK1-771

CAP, MASTER CYLINDER

Price €54.41
#13 45520-MG7-006

DIAPHRAGM

Price €24.06
#14 45521-HA2-006

PLATE, DIAPHRAGM

Price €13.94
#15 46182-MEL-D21

CIRCLIP

Price €5.16
#16 46504-KV6-702

JOINT, BRAKE ROD

Price €8.86
#17 90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

Price €13.14
#18 90545-300-000

WASHER, OIL BOLT

Price €6.41
#19 91212-422-006

O-RING, 148X24

Price €5.78
#20 93600-040401G

SCREW, FLAT, 4X40

Price €0.62
#21 93893-0401217

SCREW-WASHER, 4X12

Price €1.06
#22 94002-080000S

NUT, HEX, 8MM

Price €1.04
#23 94201-20150

PIN, SPLIT, 20X15

Price €0.77
#24 95015-54000

PIN D, JOINT

Price €2.94
#25 96001-0601407

BOLT, FLANGE, 6X14

Price €1.32
#26 96001-0601807

BOLT, FLANGE, 6X18

Price €1.22
#27 96600-0602000

BOLT, SOCKET, 6X20

Price €1.22
