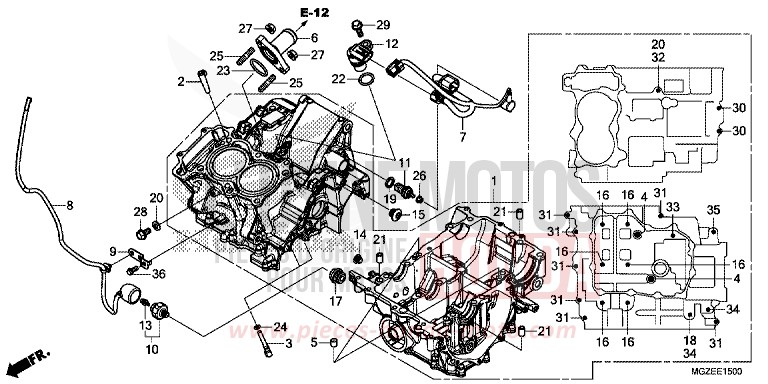

CARTER MOTEUR for CB500F ABS PEARL HIMALAYAS WHITE (NHA87) from 2013

CARTER MOTEUR for CB500F ABS PEARL HIMALAYAS WHITE (NHA87) from 2013
Reference
Product name
#1 11000-MGZ-J00

CRANKCASE SET

Price €2,257.91
#1 11000-MGZ-J01

CRANKCASE SET

Price €2,257.91
#2 11103-MGZ-J00

PIN, PARTITION

Price €5.80
#3 11140-MGZ-J00

JET COMP, OIL

Price €23.60
#4 12207-KYJ-900

BOLT, SEALING, 12MM

Price €3.25
#5 15515-MGZ-J00

ORIFICE A, 10MM

Price €3.16
#6 19060-MGZ-J00

JOINT, WATER

Price €22.48
#7 32101-MGZ-J00

SUB HARNESS, ENGINE

Price €236.20
#8 32102-MGZ-J00

SUB HARNESS, OIL PRESSURE

Price €18.01
#9 32157-MGZ-J00

STAY, HARNESS CLIP

Price €5.00
#10 35500-MEH-661

SWITCH ASSY, OIL PRESSURE (DENSO)

Price €82.79
#11 35600-MK4-860

SWITCH ASSY, NEUTRAL

Price €43.04
#12 37700-KZR-601 i

SENSOR ASSY, SPEED (TDK-EPC)

Price €56.99
#13 90002-PA6-003

BOLT-WASHER, 4X8 (DENSO)

Price €6.14
#14 90005-MAZ-000

BOLT, SOCKET, 10MM

Price €5.71
#15 90009-MGZ-J00

BOLT, SOCKET, 10MM

Price €9.90
#16 90015-MGZ-J01

BOLT, UBS, 8X105

Price €15.95
#17 90048-MY5-600

BOLT, SEALING, 18MM

Price €17.57
#18 90442-028-000

WASHER, SEALING, 8MM

Price €5.71
#19 90443-MJ6-000

WASHER, NEUTRAL

Price €5.02
#20 90463-ML7-000 i

WASHER, SEALING, 65MM

Price €4.62
#21 90701-MV9-670

DOWEL PIN, 10X16

Price €7.63
#22 91303-KF0-003 i

O-RING, 148X24 (ARAI)

Price €6.06
#23 91304-MCP-900

O-RING, 23X24

Price €7.57
#24 91305-MCJ-751 i

O-RING, 32X11

Price €4.98
#25 92900-060160E

BOLT, STUD, 6X16

Price €1.98
#26 94050-04000 i

NUT, FLANGE, 4MM

Price €0.88
#27 94050-06000 i

NUT, FLANGE, 6MM

Price €0.79
#28 95701-0601200 i

BOLT, FLANGE, 6X12

Price €1.15
#29 95701-0601800 i

BOLT, FLANGE, 6X18

Price €1.15
#30 95701-0603500 i

BOLT, FLANGE, 6X35

Price €1.34
#31 95701-0604008 i

BOLT, FLANGE, 6X40

Price €1.34
#32 95701-0609500

BOLT, FLANGE, 6X95

Price €3.06
#33 95701-0805500 i

BOLT, FLANGE, 8X55

Price €2.87
#34 95701-0807500

BOLT, FLANGE, 8X75

Price €3.06
#35 95701-1007500 i

BOLT, FLANGE, 10X75

Price €3.73
#36 96001-0601407 i

BOLT, FLANGE, 6X14

Price €1.34
