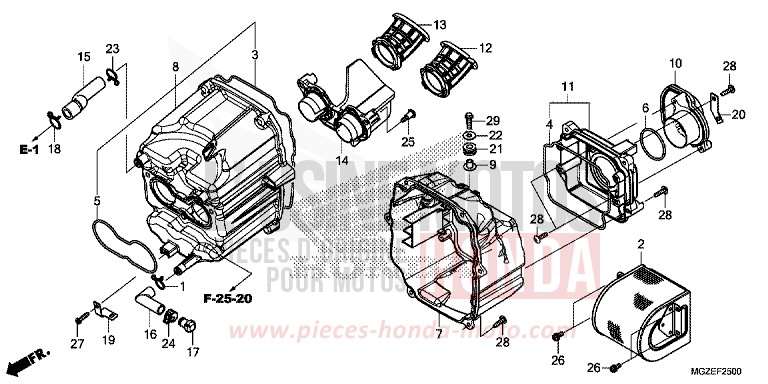

FILTRE A AIR for CB500F ABS CANDY RUBY RED (R4) from 2013

FILTRE A AIR for CB500F ABS CANDY RUBY RED (R4) from 2013
Reference
Product name
#1 15771-KV6-000

CLIP, OIL DRAIN TUBE

Price €5.51
#2 17211-MGZ-D00

ELEMENT, AIR CLEANER

Price €49.08
#3 17213-MGZ-D00

SEAL, AIR CLEANER

Price €4.80
#4 17214-MGZ-D00

SEAL, AIR CLEANER LID

Price €8.89
#5 17215-MGZ-D00

SEAL, THROTTLE BODY

Price €3.55
#6 17216-MGZ-D00

SEAL, AIR CLEANER DUCT

Price €3.50
#7 17220-MGZ-D00

COVER, AIR CLEANER

Price €130.67
#8 17225-MGZ-D00

CASE SUB ASSY, AIR CLEANER

Price €30.02
#9 17232-KYJ-900

COLLAR, AIR CLEANER MOUNTING

Price €5.62
#10 17240-MGZ-D00

DUCT, AIR CLEANER

Price €6.84
#11 17245-MGZ-D00

LID SUB ASSY, AIR CLEANER

Price €20.52
#12 17251-MGZ-D00

FUNNEL, L AIR

Price €32.63
#13 17252-MGZ-D00

FUNNEL, R AIR

Price €32.63
#14 17253-MGZ-D00

FUNNEL, AIR

Price €6.49
#15 17265-MGZ-D00

TUBE, BREATHER

Price €14.05
#16 17366-428-670

TUBE A, DRAIN

Price €14.98
#17 17370-382-870

PLUG, BREATHER TUBE

Price €2.16
#18 17724-102-700

CLIP, SUB TANK HOSE

Price €5.20
#19 32150-MGZ-J00

STAY, ENGINE SUB HARNESS

Price €3.34
#20 32207-MGZ-J00

STAY, HARNESS

Price €3.34
#21 83545-KCJ-690

RUBBER, SIDE COVER

Price €3.02
#22 90538-KSH-900

WASHER, SPECIAL, 6MM

Price €3.68
#23 90646-657-000

CLIP, AIR HOSE, 16MM

Price €4.67
#24 91406-MS8-000

CLAMP, TUBE (D145)

Price €7.18
#25 91508-MM5-000

SCREW, PAN, 5MM

Price €8.63
#26 93893-0501408

SCREW-WASHER, 5X14

Price €0.94
#27 93901-25320

SCREW, TAPPING, 5X16

Price €0.77
#28 93903-25480

SCREW, TAPPING, 5X20

Price €0.62
#29 96001-0602004

BOLT, FLANGE, 6X20

Price €1.33
