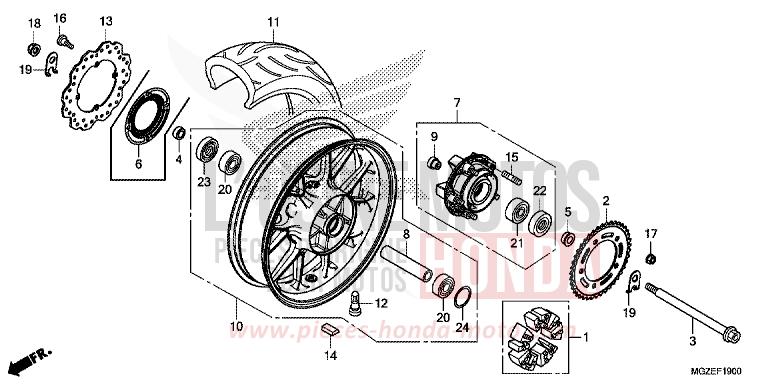

REAR WHEEL for CB500F ROSS WHITE (NH196K) from 2015

REAR WHEEL for CB500F ROSS WHITE (NH196K) from 2015
Reference
Product name
#1 06410-MER-D00

DAMPER SET, WHEEL

Price €83.96
#2 41201-MGZ-D00

SPROCKET, FINAL DRIVEN (41T)

Price €112.34
#3 42301-MGZ-J00

AXLE, RR WHEEL

Price €46.46
#4 42312-MGZ-J00

COLLAR, RR BRAKE SIDE

Price €11.36
#5 42313-MGZ-J40

COLLAR, L RR WHEEL SIDE

Price €25.58
#7 42615-MGZ-D00

FLANGE SUB ASSY, RR DRIVEN

Price €223.78
#8 42620-MGZ-J00

COLLAR, RR AXLE DISTANCE

Price €15.73
#9 42625-MGZ-J00

COLLAR B, RR AXLE DISTANCE

Price €11.36
#10 42650-MGZ-J01 i

WHEEL SUB ASSY, RR

Price €820.43
#11 42711-MGZ-D02 i

TIRE, RR (DUNLOP) (160/60ZR17 M/C 69W)

Price €654.92
#12 42753-KWF-901 i

VALVE, RIM (TRITON)

Price €6.80
#13 43251-MGZ-J02 i

DISK, RR BRAKE (SUNSTAR)

Price €333.90
#14 44721-SEA-N02

WEIGHT, BALANCE (10G) (TOHO ZINC)

Price €6.18
#14 44722-SEA-N02

WEIGHT, BALANCE (20G) (TOHO ZINC)

Price €7.97
#14 44723-SEA-N02

WEIGHT, BALANCE (30G) (TOHO ZINC)

Price €9.05
#14 44726-SEA-N02 i

WEIGHT, BALANCE (5G) (TOHO ZINC)

Price €6.02
#14 44727-SEA-N02

WEIGHT, BALANCE (15G) (TOHO ZINC)

Price €6.98
#14 44728-SEA-N02

WEIGHT, BALANCE (25G) (TOHO ZINC)

Price €8.65
#15 90102-MAS-000

BOLT, STUD, 12X25

Price €6.08
#16 90105-MGS-D30

BOLT, DISK, 8X25

Price €8.62
#17 90306-KGH-901

NUT, U, 12MM (FUJI SEIMITSU)

Price €5.03
#18 90306-MGZ-J01

NUT, U, FLANGE, 16MM

Price €14.14
#19 90559-MGZ-J00

WASHER, RR SWINGARM

Price €9.30
#20 91051-MGZ-J01

BEARING, RADIAL BALL, 6303UU (FUJIKOSHI)

Price €23.05
#20 91054-MT6-831 i

BEARING, RADIAL BALL, 6303UU (NSK)

Price €34.61
#21 91053-MM5-004 i

BEARING, RADIAL BALL, 6304UU

Price €36.67
#22 91253-442-003 i

DUST SEAL, 30X52X7

Price €15.04
#23 91253-443-761 i

DUST SEAL, 30X47X8 (ARAI)

Price €15.04
#23 91253-443-762 i

DUST SEAL, 30X47X8 (NOK)

Price €15.04
#24 91351-MGS-D30

O-RING, 55X2

Price €8.92
