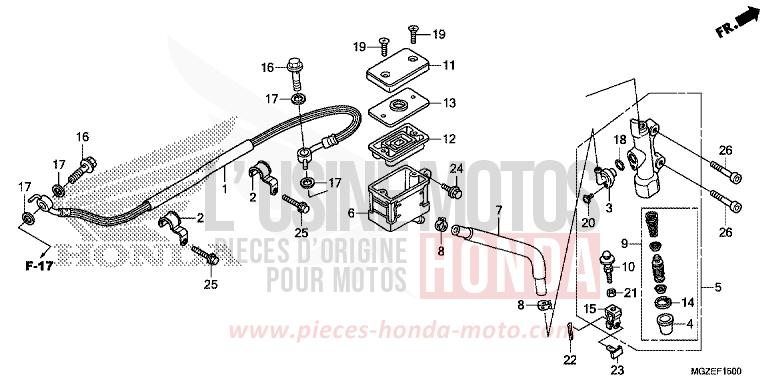

REAR BRAKE MASTER CYLINDER (STD) for CB500F ROSS WHITE (NH196K) from 2015

REAR BRAKE MASTER CYLINDER (STD) for CB500F ROSS WHITE (NH196K) from 2015
Reference
Product name
#1 43310-MGZ-J01

HOSE COMP, RR BRAKE

Price €112.43
#2 43468-MGZ-J00

GUIDE, RR BRAKE HOSE

Price €6.92
#3 43503-MER-D01

CONNECTOR, MASTER CYLINDER

Price €20.23
#4 43504-MB2-006

BOOT COMP

Price €13.19
#5 43510-MGZ-D01

CYLINDER SUB ASSY, RR BRAKE MASTER (NISSIN)

Price €218.62
#6 43511-KV3-831

CUP COMP, OIL

Price €52.86
#7 43512-MGZ-J01

HOSE COMP, RR BRAKE MASTER CYLINDER

Price €24.83
#8 43514-KS6-701

CLAMP, MASTER CYLINDER OIL HOSE

Price €15.61
#9 43520-MJ6-315

PISTON SET, MASTER CYLINDER (NISSIN)

Price €97.67
#10 43530-KV3-701

ROD COMP, PUSH

Price €57.70
#11 45513-KK1-771

CAP, MASTER CYLINDER

Price €54.41
#12 45520-MG7-006

DIAPHRAGM

Price €24.06
#13 45521-HA2-006

PLATE, DIAPHRAGM

Price €13.94
#14 46182-MEL-D21

CIRCLIP

Price €5.16
#15 46504-KV6-702

JOINT, BRAKE ROD

Price €8.86
#16 90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

Price €13.14
#17 90545-300-000

WASHER, OIL BOLT

Price €6.41
#18 91212-422-006

O-RING, 148X24

Price €5.78
#19 93600-040401G

SCREW, FLAT, 4X40

Price €0.62
#20 93893-0401217

SCREW-WASHER, 4X12

Price €1.06
#21 94002-080000S

NUT, HEX, 8MM

Price €1.04
#22 94201-20150

PIN, SPLIT, 20X15

Price €0.77
#23 95015-54000

PIN D, JOINT

Price €2.94
#24 96001-0601407

BOLT, FLANGE, 6X14

Price €1.32
#25 96001-0601807

BOLT, FLANGE, 6X18

Price €1.22
#26 96600-0602000

BOLT, SOCKET, 6X20

Price €1.22
