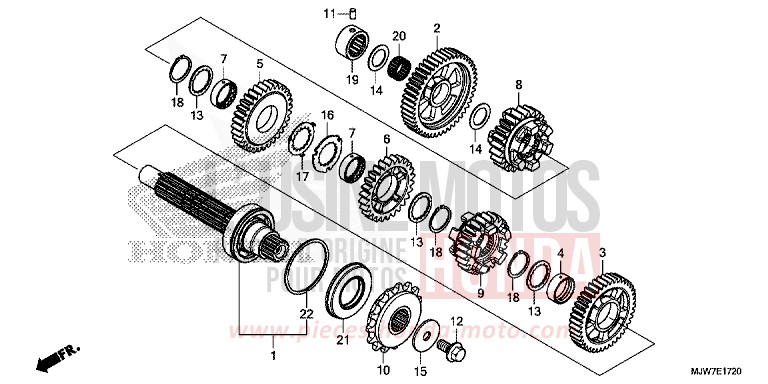

TRANSMISSION (COUNTERSHAFT) for CB500F ROSS WHITE (NH196) from 2016

TRANSMISSION (COUNTERSHAFT) for CB500F ROSS WHITE (NH196) from 2016
Reference
Product name
#1 23220-MGZ-J01

COUNTERSHAFT COMP

Price €130.16
#2 23421-MGZ-J00

GEAR, COUNTERSHAFT FIRST (46T)

Price €89.08
#3 23441-MGZ-J00

GEAR, COUNTERSHAFT SECOND (40T)

Price €86.38
#4 23442-ML7-000

COLLAR, 28MM

Price €30.61
#5 23461-MGZ-J00

GEAR, COUNTERSHAFT THIRD (32T)

Price €84.20
#6 23481-MGZ-J00

GEAR, COUNTERSHAFT FOURTH (26T)

Price €81.32
#7 23482-MV9-670

COLLAR, SPLINE, 28X31X9

Price €29.82
#8 23501-MGZ-J00

GEAR, COUNTERSHAFT FIFTH (23T)

Price €56.88
#9 23521-MGZ-J00

GEAR, COUNTERSHAFT SIXTH (24T)

Price €54.38
#10 23801-MGZ-J00

SPROCKET, DRIVE (15T)

Price €105.48
#11 24261-283-000

PIN, GEARSHIFT FORK GUIDE

Price €7.90
#12 90037-422-003

BOLT, SPECIAL, 10MM

Price €10.03
#13 90452-MR7-000

WASHER, SPLINE, 28X34X15

Price €5.57
#14 90454-428-000

WASHER, THRUST, 20MM

Price €6.70
#15 90459-438-000

WASHER, 102MM

Price €7.37
#16 90463-MR7-000

WASHER, SPLINE, 28MM

Price €10.72
#17 90464-MR7-000

WASHER, LOCK, 28MM

Price €10.57
#18 90603-MN4-000

CIRCLIP, 28MM

Price €7.90
#19 91023-MM4-003

BEARING, NEEDLE, 20X34X168 (NTN)

Price €50.48
#20 91026-MGZ-J00

BEARING, NEEDLE, 20X24X11

Price €31.94
#21 91207-KT8-003

OIL SEAL, 34X62X8

Price €15.18
#22 94560-62200

RING, SNAP, 62MM

Price €3.13
# 06112-MJW-J00

GASKET KIT B

Price €137.65
# 14560-MGZ-J01

GASKET, TENSIONER HOLE

Price €8.06
# 15154-MAT-000

PACKING, OIL STRAINER

Price €10.82
# 19226-MGZ-J00

GASKET, WATER PUMP BODY

Price €11.66
# 90442-028-000

WASHER, SEALING, 8MM

Price €3.34
# 90442-397-000

WASHER, SEALING, 6MM

Price €3.95
# 90443-MJ6-000

WASHER, NEUTRAL

Price €3.89
# 90463-MEE-000

WASHER, SEALING, 6MM

Price €5.60
# 90463-ML7-000

WASHER, SEALING, 65MM

Price €5.84
# 91301-ML7-003

O-RING, 481X36 (ARAI)

Price €6.26
# 91302-MB0-013

O-RING, 3295X262 (ARAI)

Price €5.39
# 91303-KF0-003

O-RING, 148X24 (ARAI)

Price €5.46
# 91304-MCP-900

O-RING, 23X24

Price €6.12
# 91305-MCJ-751

O-RING, 32X11

Price €3.01
# 91307-035-000

O-RING, 18X3

Price €2.27
# 91309-425-003

O-RING, 244X31 (ARAI)

Price €8.52
# 91313-MB0-003

O-RING, 147X22 (ARAI)

Price €7.07
# 94109-12000

WASHER, DRAIN PLUG, 12MM

Price €1.74
