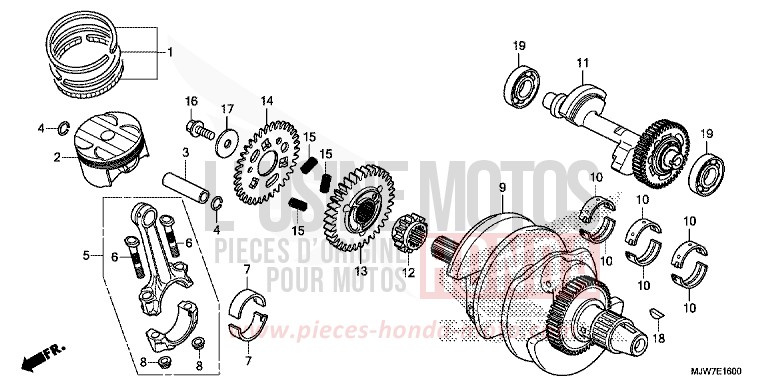

CRANKSHAFT/PISTON for CB500F ROSS WHITE (NH196) from 2016

CRANKSHAFT/PISTON for CB500F ROSS WHITE (NH196) from 2016
Reference
Product name
#1 13011-MEE-305

RING SET, PISTON (STD)

Price €95.70
#1 13021-MEE-305

RING SET, PISTON (025)

Price €71.51
#2 13101-MGZ-D00

PISTON (STD)

Price €103.73
#2 13102-MGZ-305

PISTON (025)

Price €72.31
#3 13111-MFG-D00

PIN, PISTON

Price €39.65
#4 13115-MGZ-J00

CLIP, PISTON PIN, 16MM

Price €3.41
#5 13210-MGZ-D00

ROD ASSY, CONNECTING

Price €273.28
#6 13213-ML7-020

BOLT, CONNECTING ROD

Price €10.00
#7 13214-MGZ-J01

BEARING A, CONNECTING ROD (BLUE)

Price €38.28
#7 13215-MGZ-J01

BEARING B, CONNECTING ROD (BLACK)

Price €34.76
#7 13216-MGZ-J01

BEARING C, CONNECTING ROD (BROWN)

Price €35.39
#7 13217-MGZ-J01

BEARING D, CONNECTING ROD (GREEN)

Price €34.50
#7 13218-MGZ-J01

BEARING E, CONNECTING ROD (YELLOW)

Price €38.28
#8 13215-ML7-000

NUT, CONNECTING ROD

Price €9.72
#9 13300-MGZ-D01

CRANKSHAFT COMP

Price €1,258.68
#10 13313-MW0-003

BEARING A, CRANKSHAFT (BLACK)

Price €26.93
#10 13314-MW0-003

BEARING B, CRANKSHAFT (BROWN)

Price €27.70
#10 13315-MW0-003

BEARING C, CRANKSHAFT (GREEN)

Price €27.96
#10 13316-MW0-003

BEARING D, CRANKSHAFT (YELLOW)

Price €29.15
#10 13317-MW0-003

BEARING E, CRANKSHAFT (PINK)

Price €27.68
#11 13420-MGZ-D01

SHAFT COMP, BALANCER (40T)

Price €951.58
#12 14311-MGZ-J00

SPROCKET, TIMING (17T)

Price €22.02
#13 23113-MGZ-J00

GEAR, PRIMARY DRIVE (34T)

Price €235.08
#14 23114-MGZ-J00

SUB GEAR, PRIMARY (34T)

Price €55.86
#15 23115-MV1-300

SPRING, PRIMARY DRIVE GEAR

Price €2.16
#16 90013-MGZ-J00

BOLT, SPECIAL, 10X25

Price €3.74
#17 90405-MGZ-J00

WASHER, 105X40

Price €11.16
#18 90742-KYJ-900

KEY, WOODRUFF, 25X18

Price €5.51
#19 91001-MGZ-J00

BEARING, SPECIAL RADIAL BALL, 6204

Price €39.08
# 06112-MJW-J00

GASKET KIT B

Price €137.65
# 14560-MGZ-J01

GASKET, TENSIONER HOLE

Price €8.06
# 15154-MAT-000

PACKING, OIL STRAINER

Price €10.82
# 19226-MGZ-J00

GASKET, WATER PUMP BODY

Price €11.66
# 90442-028-000

WASHER, SEALING, 8MM

Price €3.34
# 90442-397-000

WASHER, SEALING, 6MM

Price €3.95
# 90443-MJ6-000

WASHER, NEUTRAL

Price €3.89
# 90463-MEE-000

WASHER, SEALING, 6MM

Price €5.60
# 90463-ML7-000

WASHER, SEALING, 65MM

Price €5.84
# 91301-ML7-003

O-RING, 481X36 (ARAI)

Price €6.26
# 91302-MB0-013

O-RING, 3295X262 (ARAI)

Price €5.39
# 91303-KF0-003

O-RING, 148X24 (ARAI)

Price €5.46
# 91304-MCP-900

O-RING, 23X24

Price €6.12
# 91305-MCJ-751

O-RING, 32X11

Price €3.01
# 91307-035-000

O-RING, 18X3

Price €2.27
# 91309-425-003

O-RING, 244X31 (ARAI)

Price €8.52
# 91313-MB0-003

O-RING, 147X22 (ARAI)

Price €7.07
# 94109-12000

WASHER, DRAIN PLUG, 12MM

Price €1.74
