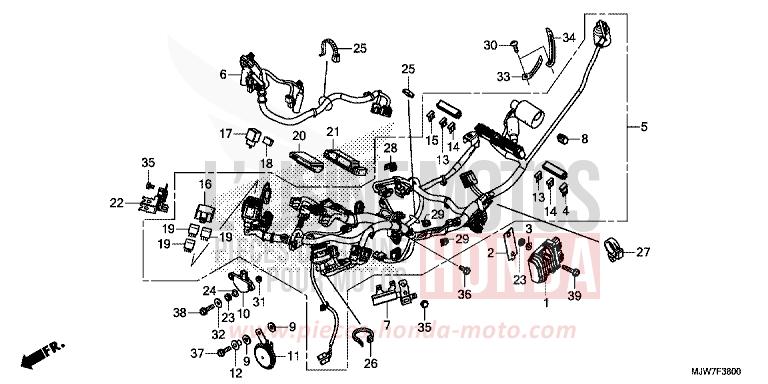

WIRE HARNESS for CB500F MILLENNIUM RED (R263) from 2017

WIRE HARNESS for CB500F MILLENNIUM RED (R263) from 2017
Reference
Product name
#1 31600-MGZ-J01 i

ASSY. RECTIFICATEUR-REGULATOR

Price €683.64
#2 31605-MJW-J00

PLATE, REGULATE RECTIFIER

Price €70.16
#3 31607-MJW-J00

COLLAR, REGULATOR RECTIFIER

Price €4.31
#4 31730-MAS-601 i

DIODENEINHEIT, DREIWEG (SUMITOMO)

Price €22.76
#5 32100-MJW-T50

HARNESS, WIRE

Price €447.54
#6 32103-MJW-J40

SUB HARNESS, FR

Price €111.01
#7 32206-MGZ-J00

SUPPORT D'COUPLING

Price €14.23
#8 32606-GEV-761

CAP, FAUX (4P) (ROUGE)

Price €10.52
#9 33714-KL3-620

RUBBER OF SUPPORT OF REAR LIGHT

Price €7.60
#10 35160-MGS-D31

SENSOREINHEIT, BOESCHUNGSWINKEL

Price €314.98
#11 38110-KPP-T01

HORN COMP. (TOP)

Price €37.60
#12 38117-KFE-701 i

RING, ADJUSTMENT KLAXON

Price €3.28
#13 38221-SNA-A31

FUSIBLE OF LAME (7.5A)

Price €6.85
#14 38221-SNA-A51

FUSIBLE OF LAME (15A)

Price €6.85
#15 38221-SNA-A81

FUSIBLE OF LAME (30A)

Price €6.85
#16 38281-MGZ-J01

COVER OF BOX OF RELAIS

Price €9.96
#17 38301-MJE-D01 i

RELAY COMP, WINKER (MITSUBA)

Price €80.45
#18 38306-MGZ-K00

SUSPENSION, WINKER RELAY

Price €20.46
#19 38501-MEL-003 i

ASSY. RELAIS D'ENERGIE (MICRO ISO 4P)

Price €7.66
#20 38770-MJW-DF1

PGM-FI UNIT

Price €388.92
#21 38774-MGZ-J00

BUSHING, UNIT PGM-FI

Price €7.79
#22 50194-MJW-J00

ARMATURE, BOX A RELAIS

Price €19.57
#23 64535-MFJ-D00

SIDE COVER RUBBER

Price €7.43
#24 90129-MGZ-J00

BAND, SENSOR ANGLE INCLINAISON SIDE

Price €4.88
#25 90650-KV6-003 i

STRIPE, CABLE 95MM

Price €9.46
#27 90652-HC4-003 i

CLIP OF HARNESS

Price €8.45
#28 91535-TA0-003

CLIP D'COUPLING (BROWN FONCE)

Price €11.84
#29 91565-SEL-003

CLIP D'COUPLING (BLACK)

Price €6.83
#30 93903-24380 i

SELF-TAPPING SCREW, 4X12

Price €1.21
#31 94050-06080 i

FLANGE NUT, 6MM

Price €1.20
#32 94103-06800 i

WASHER PLATE, 6MM

Price €0.78
#33 94591-46000

CLIP, WIRE

Price €3.06
#34 94591-49000

PINCE, 4X90

Price €3.50
#35 95701-0601000 i

FLANGE BOLT, 6X10

Price €1.15
#36 95701-0601408 i

FLANGE BOLT, 6X14

Price €1.15
#37 95701-0602007 i

FLANGE BOLT, 6X20

Price €1.15
#38 95701-0602208 i

FLANGE BOLT, 6X22

Price €1.25
#39 95701-0602808 i

FLANGE BOLT, 6X28

Price €1.50
