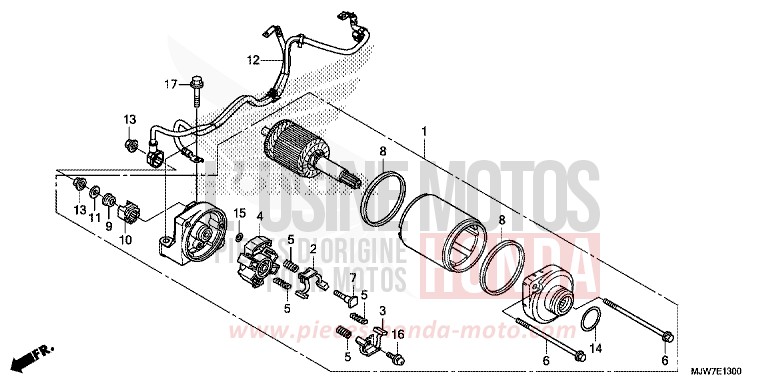

STARTER MOTOR for CB500F MAT GUNPOWDER BLACK METALLIC (NH436) from 2018

STARTER MOTOR for CB500F MAT GUNPOWDER BLACK METALLIC (NH436) from 2018
Reference
Product name
#1 31200-MGZ-J01

STARTER MOTOR ASSY. (MITSUBA)

Price €399.31
#2 31201-MEW-921

CARBON BRUSH ASSY. A

Price €18.88
#3 31202-MEW-921

CARBON BRUSH ASSY. B

Price €18.88
#4 31203-MEW-921

BRUSH HOLDER

Price €13.49
#5 31204-MEW-921

SPRING, BRUSH-CHARBON

Price €6.92
#6 31205-HP5-601

BOLT OF FIXING

Price €7.91
#7 31206-MEW-921

BOLT OF BORNE

Price €6.38
#8 31207-HP5-601

RING

Price €6.80
#9 31208-MEW-921

INSULATOR

Price €5.58
#10 31209-MEW-921

STOPPER, BORNE

Price €12.14
#11 31210-MEW-921

WASHER

Price €5.44
#12 32405-MGZ-J00

CABLE, STARTER MOTOR ET TERRE

Price €54.26
#13 90071-MB0-000 i

NUT-WASHER, 6MM

Price €6.12
#14 91309-425-003 i

O-RING, 24.4X3.1 (ARAI)

Price €12.65
#15 91320-MB0-000

O-RING, 4X2

Price €5.34
#16 93892-0501208 i

SCREW A HEAD A WASHER, 5X12

Price €1.34
#17 95801-0602800 i

FLANGE BOLT, 6X28

Price €1.34
