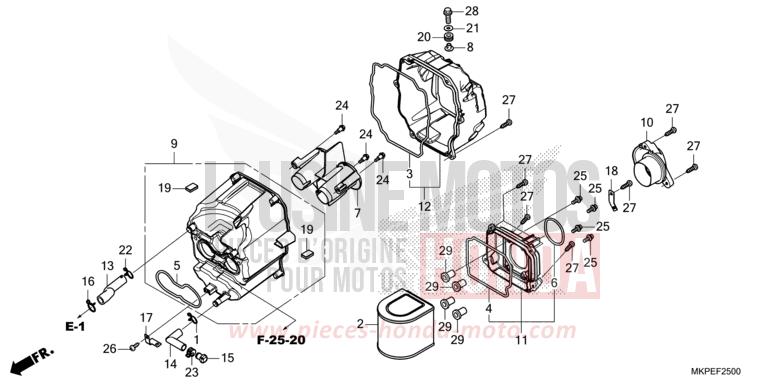

AIR CLEANER for CB500F MAT AXIS GRAY METALLIC (NH303) from 2022

AIR CLEANER for CB500F MAT AXIS GRAY METALLIC (NH303) from 2022
Reference
Product name
#1 15771-KV6-000

CLIP, OIL DRAIN TUBE

Price €5.51
#2 17211-MKP-J00

ELEMENT, AIR CLEANER

Price €49.08
#3 17213-MKP-J00

SEAL, AIR CLEANER

Price €4.25
#4 17214-MKP-J00

SEAL, AIR CLEANER LID

Price €3.50
#5 17215-MGZ-D00

SEAL, THROTTLE BODY

Price €3.55
#6 17216-MKP-J00

SEAL, AIR CLEANER DUCT

Price €3.50
#7 17225-MKP-J00

FUNNEL, AIR

Price €16.14
#8 17232-KYJ-900

COLLAR, AIR CLEANER MOUNTING

Price €5.62
#9 17235-MKP-J00

CASE SUB ASSY, AIR CLEANER

Price €26.98
#10 17240-MKP-J00

DUCT, AIR CLEANER

Price €9.96
#11 17245-MKP-J00

LID SUB ASSY, AIR CLEANER

Price €13.68
#12 17255-MKP-J00

COVER SUB ASSY, AIR CLEANER

Price €22.80
#13 17265-MGZ-D00

TUBE, BREATHER

Price €14.05
#14 17366-428-670

TUBE A, DRAIN

Price €14.98
#15 17370-382-870

PLUG, BREATHER TUBE

Price €2.16
#16 17724-102-700

CLIP, SUB TANK HOSE

Price €5.20
#17 32150-MGZ-J00

STAY, ENGINE SUB HARNESS

Price €3.34
#18 32207-MGZ-J00

STAY, HARNESS

Price €3.34
#19 80109-KYJ-900

SPONGE, RUBBER

Price €4.33
#20 83545-KCJ-690

RUBBER, SIDE COVER

Price €3.02
#21 90538-KSH-900

WASHER, SPECIAL, 6MM

Price €3.68
#22 90646-657-000

CLIP, AIR HOSE, 16MM

Price €4.67
#23 91406-MS8-000

CLAMP, TUBE (D145)

Price €7.18
#24 91508-MGP-D00

SCREW, PAN, 5MM

Price €9.84
#25 93891-0501608

SCREW-WASHER, 5X16

Price €0.97
#26 93901-25320

SCREW, TAPPING, 5X16

Price €0.77
#27 93903-25480

SCREW, TAPPING, 5X20

Price €0.62
#28 96001-0602004

BOLT, FLANGE, 6X20

Price €1.33
#29 19619-ZM7-300

COLLAR, FAN COVER

Price €1.82
