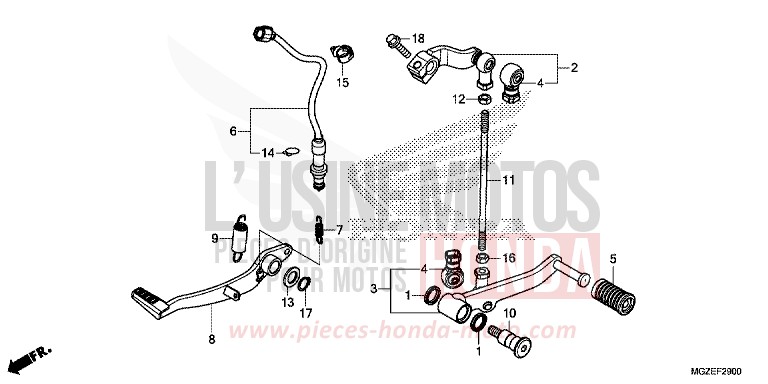

PEDAL for CB500F GRAPHITE BLACK (NHB01) from 2015

PEDAL for CB500F GRAPHITE BLACK (NHB01) from 2015
Reference
Product name
#1 24706-MK3-770

RUBBER, DUST SEAL

Price €8.11
#4 24724-MBW-D21

COVER, DUST

Price €19.44
#5 24781-KR3-770

RUBBER, GEAR CHANGE PEDAL

Price €9.32
#13 90557-230-000

WASHER, 152X25

Price €6.56
#14 90601-KAF-003

CLIP, SWITCH COVER

Price €4.34
#15 90683-SA0-003

CLIP, WIRE HARNESS, 25MM

Price €4.76
#16 94001-060700S

NUT, HEX, 6MM

Price €0.86
#17 94511-15000

CIRCLIP, EXTERNAL, 15MM

Price €0.91
#18 95701-0602007

BOLT, FLANGE, 6X20

Price €1.13
#2 24710-MGZ-J00

ARM COMP, GEAR CHANGE

Price €147.28
#3 24720-MGZ-J00

PEDAL COMP, GEAR CHANGE

Price €82.66
#6 35350-MGZ-J02

SWITCH ASSY, RR STOP

Price €64.21
#7 35357-HP0-A00

SPRING, STOP SWITCH

Price €5.23
#8 46500-KYJ-900

PEDAL COMP, RR BRAKE

Price €54.20
#9 46513-KYJ-900

SPRING ASSY, BRAKE PEDAL

Price €6.77
#10 90113-MGZ-J00

BOLT, CHANGE PIVOT

Price €15.97
#11 90165-MGZ-J00

BOLT, TIE ROD

Price €10.16
#12 90301-MGZ-J00

NUT, SPECIAL, 6MM (LEFT HAND THREAD)

Price €5.59
