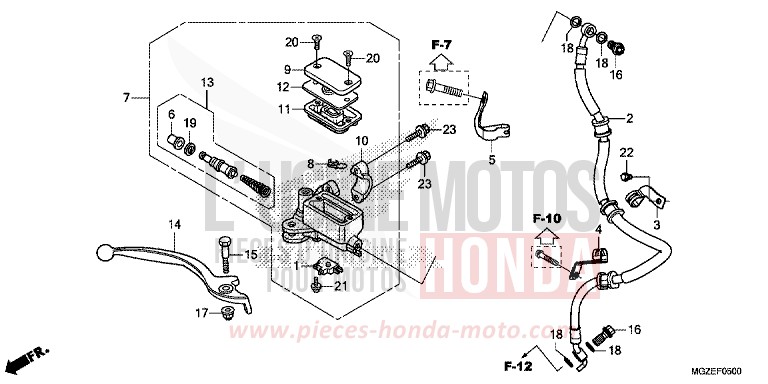

FRONT BRAKE MASTER CYLINDER (STD) for CB500F GRAPHITE BLACK (NHB01) from 2013

FRONT BRAKE MASTER CYLINDER (STD) for CB500F GRAPHITE BLACK (NHB01) from 2013
Reference
Product name
#1 35340-MGS-D31

SWITCH ASSY, FR STOP (ALPS)

Price €41.32
#2 45125-MGZ-J41

HOSE COMP, FR BRAKE

Price €61.44
#3 45155-MGZ-J00

CLAMPER A, FR BRAKE HOSE

Price €5.15
#4 45156-MGZ-J00

CLAMPER B, FR BRAKE HOSE

Price €6.94
#5 45157-MGZ-J40

CLAMPER C, FR BRAKE HOSE

Price €9.20
#6 45504-410-003

BOOT COMP

Price €15.22
#7 45510-MGZ-D01

CYLINDER SUB ASSY, FR BRAKE MASTER (NISSIN)

Price €246.18
Contact us
#8 45512-MA6-006

PROTECTOR

Price €74.21
#9 45513-KK1-771

CAP, MASTER CYLINDER

Price €54.41
#10 45517-166-006

HOLDER, MASTER CYLINDER

Price €22.57
#11 45520-MG7-006

DIAPHRAGM

Price €24.06
#12 45521-HA2-006

PLATE, DIAPHRAGM

Price €13.94
#13 45530-471-831

CYLINDER SET, MASTER

Price €83.28
#14 53175-KPP-T01

LEVER, R STEERING HANDLE

Price €29.26
#15 90114-166-006

BOLT, HANDLE LEVER PIVOT

Price €8.58
#16 90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

Price €13.14
#17 90202-KCW-870

NUT, CAP, 6MM

Price €5.93
#18 90545-300-000

WASHER, OIL BOLT

Price €6.41
#19 90651-MA5-671

CIRCLIP

Price €5.83
#20 93600-040121G

SCREW, FLAT, 4X12

Price €0.76
#21 93893-0401217

SCREW-WASHER, 4X12

Price €1.06
#22 96001-0601007

BOLT, FLANGE, 6X10

Price €1.06
#23 96001-0602207

BOLT, FLANGE, 6X22

Price €1.70
