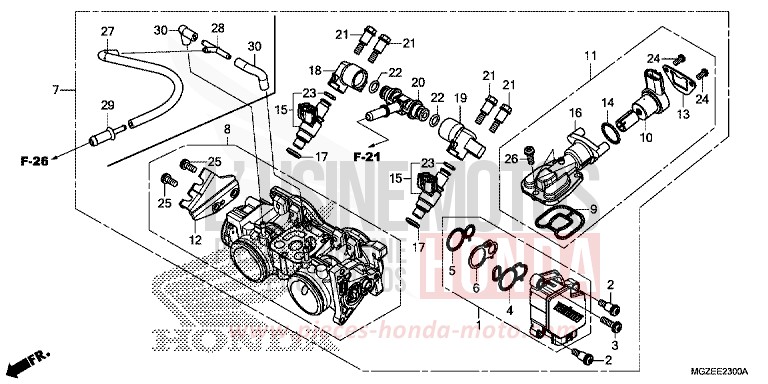

THROTTLE BODY for CB500F GRAPHITE BLACK (NHB01) from 2013

THROTTLE BODY for CB500F GRAPHITE BLACK (NHB01) from 2013
Reference
Product name
#1 16060-MGZ-D01

SENSOR SET

Price €248.70
#2 16081-KPH-701 i

SCREW, TORX, 5X87

Price €7.08
#3 16082-KPH-701 i

SCREW, TORX, 5X17

Price €7.08
#4 16083-MGZ-D01

O-RING, SENSOR

Price €36.72
#5 16084-MGZ-D01

O-RING, SENSOR

Price €34.39
#6 16085-MGZ-D01

PLATE

Price €44.39
#7 16400-MGZ-D02 i

BODY ASSY, THROTTLE (GQBJA A)

Price €2,166.44
#8 16410-MGZ-D02 i

BODY SET

Price €1,188.06
#9 16428-MGZ-D01

O-RING, AIR INJECTION CONTROL VALVE

Price €37.08
#10 16430-MFJ-D01

MOTOR ASSY

Price €284.88
#11 16430-MGZ-D01 i

VALVE SET, IDLE AIR CONTROL

Price €290.02
#12 16432-MGZ-D01

STAY, WIRE

Price €62.32
#13 16433-MEW-921

PLATE, IDLE AIR CONTROL VALVE

Price €24.89
#14 16435-MFJ-D01

O-RING, 178X19

Price €7.34
#15 16450-MFJ-D01 i

INJECTOR ASSY, FUEL

Price €346.61
#16 16451-MGZ-D01

BODY COMP, IDLE AIR CONTROL VALVE

Price €165.59
#17 16472-MCW-000

SEAL RING, INJECTOR

Price €7.13
#18 16610-MGZ-D01

PIPE, FUEL (A)

Price €43.42
#19 16620-MGZ-D01

PIPE, FUEL (B)

Price €43.42
#20 16630-MFJ-D00

T-JOINT, FUEL

Price €54.25
#21 90021-MGZ-D02 i

BOLT, SHOULDER

Price €6.58
#22 91301-PLC-000

O-RING, 747X36

Price €5.29
#23 91301-P7A-004

O-RING, 78X19

Price €5.41
#24 93500-040081H

SCREW, PAN, 4X8

Price €0.78
#25 93892-0501218 i

SCREW-WASHER, 5X12

Price €1.34
#26 93892-0501418 i

SCREW-WASHER, 5X14

Price €0.88
