CYLINDER HEAD COVER 🏍️ CB500F
CAMSHAFT/VALVE 🏍️ CB500F

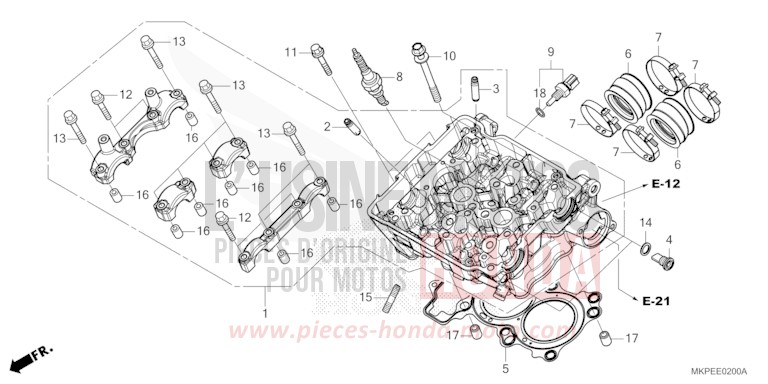

CYLINDER HEAD for CB500F GRAND PRIX RED (R380) from 2022

CYLINDER HEAD for CB500F GRAND PRIX RED (R380) from 2022
Reference
Product name
#1 12010-MKP-DA0

HEAD ASSY, CYLINDER

Price €1,498.96
#2 12204-KYJ-305

GUIDE, IN VALVE (OS) (EXHAUST SIDE)

Price €24.78
#3 12205-KYJ-305

GUIDE, EX VALVE (OS)

Price €24.78
#4 12207-MGZ-J00

BOLT, SEALING, 12MM

Price €13.63
#5 12251-MGZ-J01

GASKET, CYLINDER HEAD

Price €44.35
#6 16211-MKP-DN0

INSULATOR, THROTTLE BODY

Price €15.60
#7 16217-MGZ-J00

BAND, INSULATOR

Price €6.68
#8 31916-KRM-841 i

PLUG, SPARK (CPR8EA-9) (NGK)

Price €17.09
#9 37870-KZR-601

SENSOR ASSY, WATER TEMPERATURE...

Price €28.84
#10 90007-MGZ-J00

BOLT-WASHER, 9X100

Price €9.55
#11 90023-GHB-720

BOLT, FLANGE, 6X35

Price €6.58
#12 90017-KYJ-900

BOLT, FLANGE, 6X32

Price €2.98
#13 90019-KYJ-900

BOLT, FLANGE, 6X395

Price €2.98
#14 90418-KYJ-900

WASHER, 122X17X15

Price €3.28
#15 92900-080223E

BOLT, STUD, 8X22

Price €2.78
#16 94301-08140 i

DOWEL PIN, 8X14

Price €2.05
#17 94301-12160

PIN A, DOWEL, 12X16

Price €2.08
#18 91307-PLC-004

O-RING, 95X19 (PANASONIC)

Price €5.29
