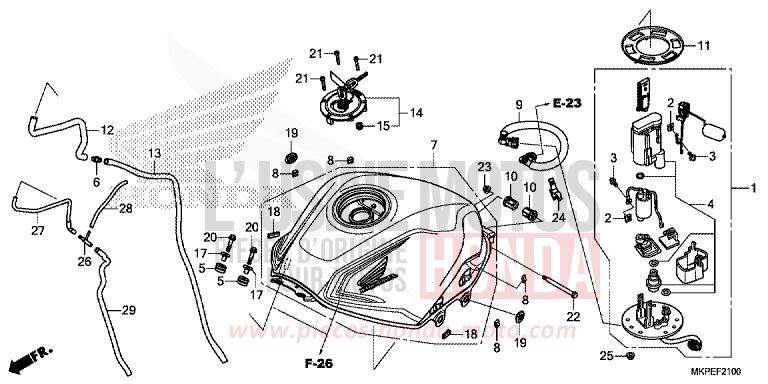

FUEL TANK/FUEL PUMP for CB500F GRAND PRIX RED (R380) from 2019

FUEL TANK/FUEL PUMP for CB500F GRAND PRIX RED (R380) from 2019
Reference
Product name
#1 16700-MKP-J01 i

PUMP UNIT, FUEL

Price €889.39
#2 16711-MGS-D31

STOPPER

Price €11.46
#3 16712-MGS-D31

SCREW, 4X66

Price €6.80
#4 16730-MKA-D82 i

FILTER ASSY, FUEL

Price €103.85
#5 17245-107-010 i

RUBBER, AIR CLEANER CASE MOUNTING

Price €10.15
#6 17359-419-670

JOINT, BREATHER TUBE

Price €6.80
#8 17529-K15-920

RUBBER, TANK COVER

Price €4.14
#9 17570-MJW-J01

HOSE COMP, FUEL FEED

Price €63.97
#10 17572-KPP-T00

CUSHION, FUEL TANK RR PIVOT

Price €3.42
#11 17574-MGS-D30

PACKING, BASE

Price €33.79
#12 17590-MGZ-J00

TUBE, FUEL TANK DRAIN

Price €13.18
#13 17591-MJW-J00

TUBE, FUEL TANK DRAIN

Price €15.59
#14 17620-MJE-D02 i

CAP COMP, FUEL FILLER

Price €205.49
#15 17621-MGP-D61 i

SEAL, BREATHER

Price €3.12
#17 61102-KTY-D30

COLLAR, RADIATOR MOUNTING

Price €9.42
#18 64122-MCZ-000

RUBBER, PROTECTOR

Price €7.43
#19 83551-300-000 i

GROMMET, AIR CLEANER CASE

Price €10.69
#20 90013-GHB-670

BOLT, FLANGE, 6X25

Price €5.96
#21 90120-MJE-D00

BOLT, SOCKET, 4X25 (SUS)

Price €2.98
#22 90135-MS2-000

BOLT, TANK HINGE

Price €9.55
#23 90301-KGH-901

NUT, U, 6MM (FUJI SEIMITSU)

Price €3.16
#24 91593-MGZ-J01

CLAMP, FUEL HOSE (BLACK)

Price €5.65
#25 94050-06000 i

NUT, FLANGE, 6MM

Price €0.79
#7 17500-MKP-J40ZC

ENS. RESERVOIR D'ESSENCE (WL) TYPE1

Price €946.72
