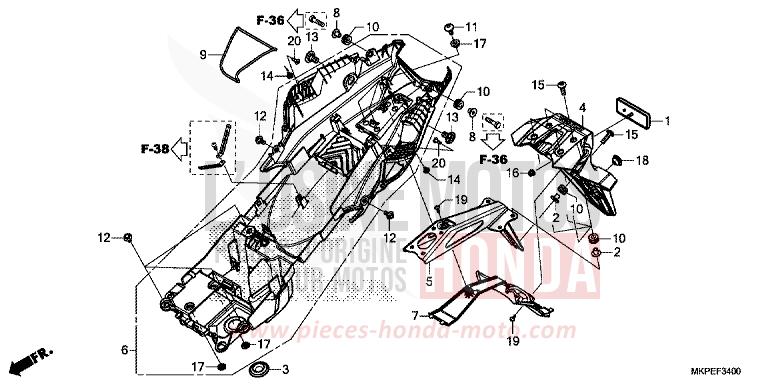

REAR FENDER for CB500F CANDY ENERGY ORANGE (YR249) from 2019

REAR FENDER for CB500F CANDY ENERGY ORANGE (YR249) from 2019
Reference
Product name
#1 33741-KPL-902 i

CATADIOPTRE (FIEM)

Price €3.67
#2 61103-KRY-900 i

RING A, FRONT AILE

Price €3.28
#5 80102-MJW-J00

COMP. SUPPORT, AILE A

Price €66.23
#7 80106-MJW-J00

COVER OF FENDER REAR

Price €22.42
#8 80113-MGZ-J00

BAND OF REAR LIGHT

Price €4.31
#9 80123-GN5-900

STRIPE D'OUTIL

Price €10.27
#10 83545-KCJ-690

SIDE COVER RUBBER

Price €3.96
#11 90107-K26-900

BOLT SPECIAL, 6X16

Price €2.98
#12 90111-187-000

FLANGE BOLT, 6MM

Price €9.20
#14 90116-K0A-E11

RIVET, TAPPET 6MM

Price €7.63
#16 90301-KWN-901

NUT U, 5MM

Price €3.16
#17 90503-MJE-D40

BAND OF MOUNTING

Price €4.30
#19 93903-24380 i

SELF-TAPPING SCREW, 4X12

Price €1.21
#20 90116-SP0-003

CLIP OF GASKET SEALING OF BUMPER

Price €3.36
#3 64285-MKP-J00

WASHER ISOLANTE, PANNEAU INT.

Price €5.71
#4 80100-MKP-D00ZA

AILE A, REAR (WL) TYPE1

Price €41.38
#6 80104-MKP-J00

ASSY. FENDER B REAR

Price €84.73
#13 90115-MKP-J00

BOLT SPECIAL, 10X16

Price €4.44
#15 90130-MKP-J00

CYLINDRICAL HEAD SCREW, 6X22

Price €3.97
