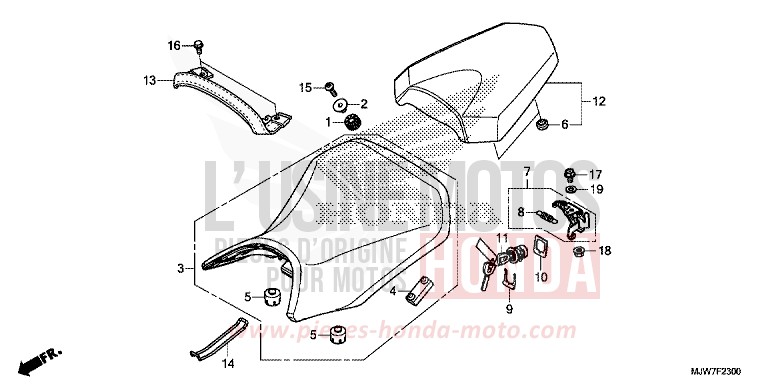

SEAT for CB500F CANDY ENERGY ORANGE (YR249) from 2016

SEAT for CB500F CANDY ENERGY ORANGE (YR249) from 2016
Reference
Product name
#1 33705-KW7-900 i

REAR LIGHT MOUNTING RUBBER A

Price €4.14
#2 33706-KAN-960

BAND OF MOUNTING OF REAR LIGHT

Price €4.40
#4 77205-286-000 i

RUBBER B OF FIXING OF SEAT

Price €18.07
#5 77206-KFN-850

RUBBER OF CUSHION OF SEAT

Price €8.41
#6 77215-KW7-900

RUBBER C OF FIXING OF SEAT

Price €4.14
#8 77234-GN2-000

SPRING OF BLOCAGE OF SEAT

Price €9.78
#14 83606-KWS-901

STRIPE D'OUTIL

Price €7.22
#15 90003-KWN-900

BOLT SPECIAL, 6X23.5

Price €2.98
#18 94050-06080 i

FLANGE NUT, 6MM

Price €1.20
#19 94101-06800 i

WASHER PLATE, 6MM

Price €0.78
#3 77100-MJW-J01ZA i

SEAT ASSY, SINGLE TYPE1 (TYPE1 )

Price €524.08
#7 77220-MJW-J01

VERROU COMP. SEAT

Price €19.32
#9 77235-MJE-D00

PLATE OF ADJUSTMENT OF CLE OF SERRURE

Price €5.44
#10 77236-MGP-D60

WASHER OF VERROU OF SEAT

Price €7.20
#11 77239-MJW-J01 i

KEY, SEAT LOCK (WAVE)

Price €103.81
#12 77300-MJW-J01ZB

SEAT ASSY, PILLION TYPE1 (TYPE1 )

Price €191.93
#13 77310-MJW-J00

SECURITE, CEINTURE

Price €43.39
#16 90102-KTM-D20

FLANGE BOLT, 6X14

Price €2.98
#17 90130-ML0-730

FLANGE BOLT, 6X12

Price €5.21
