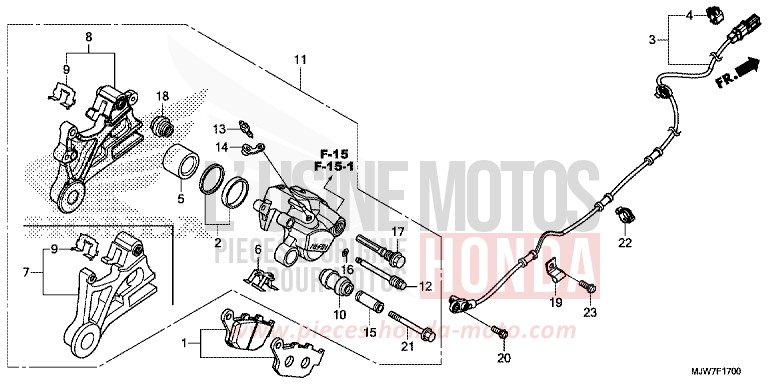

REAR BRAKE CALIPER for CB500F CANDY ENERGY ORANGE (YR249) from 2016

REAR BRAKE CALIPER for CB500F CANDY ENERGY ORANGE (YR249) from 2016
Reference
Product name
#1 06435-MGZ-J01 i

SET OF SABOT REAR

Price €58.97
#2 06451-443-405

SET SEALING, PISTON

Price €28.81
#4 42524-T5A-003

CLIP D'COUPLING (BLUE FONCE)

Price €6.97
#5 43107-KT7-761

PISTON

Price €45.54
#6 43108-MBB-006

SPRING OF BRAKE PAD

Price €14.00
#9 43112-KT7-761

FIXING

Price €14.81
#10 43132-KT7-761

BOOT OF MANCHON

Price €11.68
#12 43215-KZ4-J41

PIN OF SUSPENSION

Price €18.26
#13 43352-568-003 i

PURGE SCREW (NISSIN)

Price €9.41
#14 43353-461-771 i

BLEEDER CAP

Price €9.12
#15 45111-MA3-006

MANCHON

Price €21.78
#16 45111-MAJ-G41 i

RING OF STOPPER

Price €7.22
#17 45131-MN9-006

BOLT OF PIN

Price €20.35
#18 45133-MA3-006 i

BOOT B

Price €2.76
#19 45157-MEJ-J00

CLIP A, SENSORKABEL

Price €12.72
#20 90107-MEJ-D00

BOLT, FLANGE, 6X16

Price €5.46
#21 90180-MN8-006 i

FLANGE BOLT, 8X49

Price €8.15
#22 90690-MCA-003

KABELKLEMME, 14MM

Price €6.52
#23 96001-0601207 i

FLANGE BOLT, 6X12

Price €1.25
#3 38510-MJW-J11

SENSOR, RR WHEEL SPEED

Price €79.13
#8 43110-MJW-J11

SUPPORT COMP., BRAKE REAR

Price €66.37
#11 43150-MJW-J11

SOUS-ASSEMBLAGE OF MACHOIRE REAR (NISSIN)

Price €242.94
