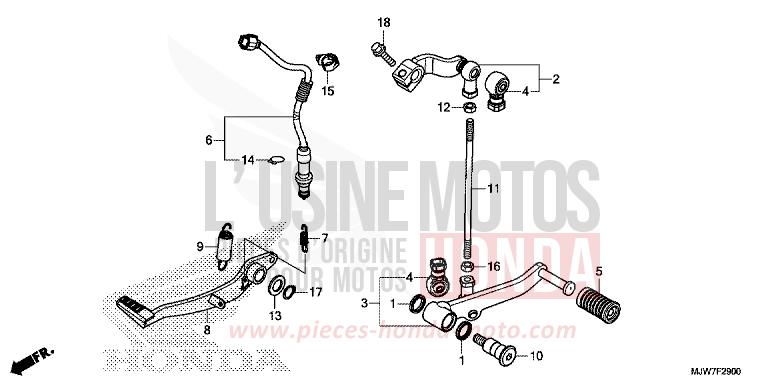

PEDAL for CB500F CANDY CHROMOSPHERE RED (R381) from 2018

PEDAL for CB500F CANDY CHROMOSPHERE RED (R381) from 2018
Reference
Product name
#1 24706-MK3-770

RUBBER OF CACH-POUSSIERE

Price €8.72
#2 24710-MGZ-J00

ARM COMP. CHANGE SPEED

Price €46.73
#3 24720-MGZ-J00

PEDAL COMP. OF SELECTION OF SPEED

Price €94.01
#4 24724-MBW-D21

COVER-POUSSIERE

Price €16.73
#5 24781-KR3-770

RUBBER, GANGSCHALTPEDAL

Price €8.78
#6 35350-MJW-J01

SWITCH ASSY, RR STOP

Price €45.59
#7 35357-HP0-A00

STOP SWITCH SPRING

Price €7.72
#8 46500-KYJ-900

PEDAL COMP. BRAKE REAR

Price €108.10
#9 46513-KYJ-900

ASSY. OF SPRING OF PEDAL OF BRAKE

Price €4.56
#10 90113-MGZ-J00

BOLT OF PIVOT OF CHANGE

Price €14.75
#11 90165-MGZ-J00

BOLT OF BAR D'COUPLING

Price €8.86
#12 90301-MGZ-J00

NUT SPECIAL, 6MM (LEFT HAND THREAD)

Price €5.16
#13 90557-230-000

WASHER, 15.2X25

Price €6.80
#14 90601-KAF-003

CLIP, SWITCH COVER

Price €6.23
#15 90683-SA0-003 i

CLIP OF HARNESS ELECTRIC, 25MM

Price €9.37
#16 94001-060700S i

NUT HEX., 6MM

Price €0.88
#17 94511-15000

CIRCLIP OUTER, 15MM

Price €0.94
#18 95701-0602007 i

FLANGE BOLT, 6X20

Price €1.15
