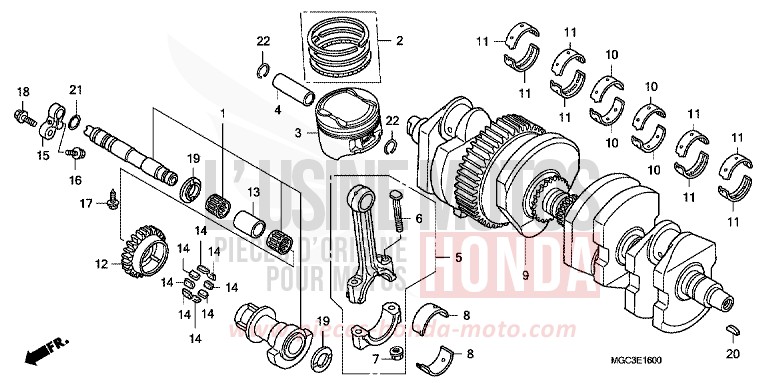

CRANKSHAFT/PISTON for CB1100 ABS CANDY GLORY RED-U (R101) from 2013

CRANKSHAFT/PISTON for CB1100 ABS CANDY GLORY RED-U (R101) from 2013
Reference
Product name
#1 06130-MGC-305

BALANCER SET

Price €318.02
#2 13011-MGC-000

RING SET, PISTON (STD)

Price €126.64
#2 13021-MGC-000

RING SET, PISTON (025)

Price €113.11
#3 13101-MGC-000

PISTON (STD)

Price €164.71
#3 13102-MGC-000

PISTON (025)

Price €164.71
#4 13111-KCZ-000 i

PIN, PISTON

Price €34.55
#5 13210-MGC-000

ROD ASSY, CONNECTING

Price €366.13
#6 13213-MAT-003

BOLT, CONNECTING ROD

Price €12.74
#7 13215-ML7-000

NUT, CONNECTING ROD

Price €10.28
#8 13224-MGC-003

BEARING A, CONNECTING ROD (BROWN)

Price €34.44
#8 13225-MGC-003

BEARING B, CONNECTING ROD (GREEN)

Price €34.44
#8 13226-MGC-003

BEARING C, CONNECTING ROD (YELLOW)

Price €34.44
#9 13300-MAZ-010 i

CRANKSHAFT COMP

Price €3,215.83
#10 13311-MM5-003

BEARING A, MAIN (14MM) (BROWN)

Price €26.94
#10 13312-MM5-003 i

BEARING B, MAIN (14MM) (GREEN)

Price €26.94
#10 13313-MM5-003 i

BEARING C, MAIN (14MM) (YELLOW)

Price €26.94
#10 13314-MM5-003

BEARING D, MAIN (14MM) (PINK)

Price €26.94
#11 13315-MJ0-010

BEARING A, MAIN (17MM) (GREEN)

Price €27.28
#11 13316-MJ0-010 i

BEARING B, MAIN (17MM) (YELLOW)

Price €27.28
#11 13317-MJ0-010

BEARING C, MAIN (17MM) (PINK)

Price €27.28
#11 13318-MM5-004 i

BEARING D, MAIN (17MM) (BROWN)

Price €27.28
#12 13421-MAZ-000

GEAR, BALANCER (23T)

Price €198.66
#13 13433-MM5-000

COLLAR, DISTANCE

Price €21.82
#14 13435-MM5-000

RUBBER, DAMPER

Price €6.76
#15 13436-MM5-000

HOLDER, BALANCER SHAFT

Price €67.15
#16 90002-MCZ-000

BOLT, FLANGE, 6X18

Price €2.41
#17 90004-MM5-000

BOLT, SPECIAL, 6X18

Price €4.96
#18 90022-MFA-D00

BOLT, FLANGE, 8X25

Price €5.96
#19 90457-MM5-000

WASHER A, BALANCER SIDE

Price €7.87
#20 90741-MAZ-000

KEY, SPECIAL WOODRUFF, 25X14

Price €8.32
#21 91306-329-000

O-RING, 16X19

Price €7.00
#22 94601-17000 i

CLIP, PISTON PIN, 17MM

Price €0.88
# 16197-MGC-003

TUBE

Price €8.63
# 16400-MGC-D22 i

THROTTLE BODY ASSY (GQ8FA A)

Price €1,373.12
# 16401-MGC-D22 i

THROTTLE BODY ASSY

Price €1,074.82
# 16430-MFJ-D01

MOTOR ASSY

Price €284.88
# 16431-MFJ-D01

PLATE, JOINT

Price €12.46
# 16432-MFG-D01

JOINT, IDLE AIR CONTROL VALVE

Price €23.59
# 16433-HN8-A61 i

SCREW, TORX

Price €6.94
# 16433-MEW-921

PLATE, IDLE AIR CONTROL VALVE

Price €24.89
# 16434-MFJ-D01

O-RING

Price €7.34
# 16435-MFJ-D01

O-RING, 178X19

Price €7.34
# 16440-MGC-003

TUBE COMP, 9X330

Price €32.74
# 16441-MFP-003

TUBE

Price €26.88
# 16472-KPC-D50

RING, SEAL

Price €6.80
# 16610-MGC-D21

PIPE A, FUEL

Price €106.30
# 16620-MGC-D21

PIPE, FUEL (B)

Price €106.30
# 16630-MGC-003

T-JOINT, FUEL

Price €78.88
# 17201-MCZ-003

JOINT, FOUR WAY

Price €20.62
# 43514-MN9-006 i

CLAMP, MASTER CYLINDER OIL HOSE

Price €20.35
# 91301-PLC-000

O-RING, 747X36

Price €5.29
# 91301-GGL-J01

O-RING, 63X22

Price €21.91
# 90021-MGZ-D02 i

BOLT, SHOULDER

Price €6.58
# 95005-3504020 i

TUBE, 35X40 (95005-35001-20M)

Price €1.63
# 95005-3511020 i

TUBE, 35X110 (95005-35001-20M)

Price €2.62
Contact us
# 16450-MGC-D21

INJECTOR ASSY, FUEL

Price €395.48
