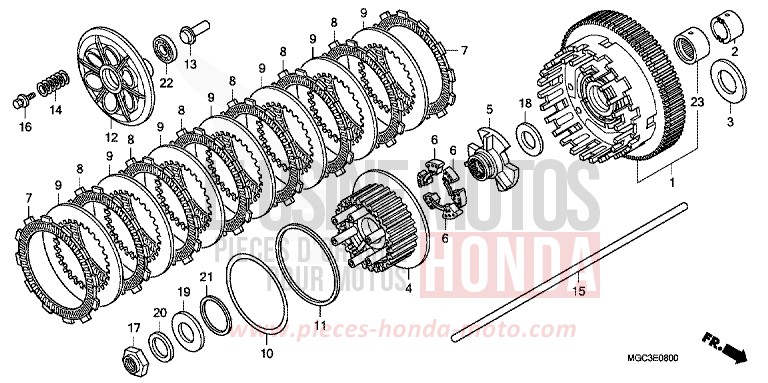

CLUTCH for CB1100 ABS CANDY GLORY RED-U (R101) from 2013

CLUTCH for CB1100 ABS CANDY GLORY RED-U (R101) from 2013
Reference
Product name
#1 22100-MEJ-000

OUTER COMP, CLUTCH

Price €653.38
#2 22116-MS2-610

GUIDE, CLUTCH OUTER

Price €52.19
#3 22117-MEJ-610

COLLAR, DISTANCE

Price €29.22
#4 22121-MEJ-000

CENTER, CLUTCH

Price €147.65
#5 22122-MEJ-610 i

BOSS, CLUTCH CENTER

Price €221.72
#6 22125-MEJ-000

RUBBER, CLUTCH DAMPER

Price €40.21
#7 22201-MBB-000

DISK, CLUTCH FRICTION

Price €23.18
#8 22201-MBT-F20

DISK, CLUTCH FRICTION

Price €23.23
#9 22321-MT3-000 i

PLATE, CLUTCH

Price €20.22
#10 22325-MN4-000

SPRING, CLUTCH PLATE

Price €16.27
#11 22326-MV1-000

SEAT, JUDDER SPRING

Price €11.54
#12 22351-MEJ-000

PLATE, CLUTCH PRESSURE

Price €99.60
#13 22366-MAZ-000

PIECE, CLUTCH JOINT

Price €34.75
#14 22401-MAT-000

SPRING, CLUTCH

Price €9.29
#15 22850-MEJ-000

ROD, CLUTCH LIFTER

Price €43.46
#16 90022-MAT-E00

BOLT-WASHER, 6X35

Price €8.15
#17 90231-MCH-000

NUT, LOCK, 25MM

Price €19.38
#18 90401-MS2-610

WASHER, THRUST, 282X56X2

Price €18.22
#19 90402-MEA-670

WASHER, 252X51X25

Price €15.48
#20 90432-MM8-003 i

WASHER, SPRING, 25MM (CHUO HATSUJO)

Price €11.70
#21 90456-759-000

SHIM D, FINAL REDUCTION SECOND GEAR (10MM)

Price €8.34
#22 91008-362-000 i

BEARING, RADIAL BALL, 16003

Price €33.26
#23 91024-MM5-003 i

BEARING, NEEDLE, 40X47X31

Price €81.01
# 11311-MGC-000

COVER, R CRANKCASE

Price €300.97
# 11330-MGC-000

COVER ASSY, CLUTCH

Price €354.25
# 11333-MZ1-000

PLATE, CLUTCH COVER RUBBER

Price €12.42
# 11334-MZ1-000

RUBBER, CLUTCH COVER

Price €44.45
# 15611-KA4-710

CAP, OIL FILLER

Price €24.01
# 30291-MGC-010

ROTOR, PULSE

Price €29.10
# 30300-MGC-003

GENERATOR ASSY, PULSE

Price €112.12
# 35211-443-760

CLAMP, SWITCH CORD

Price €8.72
# 90001-MGC-000

BOLT, FLANGE, 10X20

Price €10.70
# 90006-GHB-680

BOLT, FLANGE, 6X28 (NSHF)

Price €5.46
# 90029-MT4-000

BOLT, FLANGE, 6X12 (CT200)

Price €4.96
# 90087-MR1-000

CAP, 30MM

Price €26.98
# 91307-KF0-003 i

O-RING, 18X3 (ARAI)

Price €5.70
# 91344-PC9-004 i

O-RING, 29X24 (NOK)

Price €5.98
# 94301-08140 i

DOWEL PIN, 8X14

Price €2.05
# 95701-0601400 i

BOLT, FLANGE, 6X14

Price €1.15
# 16197-MGC-003

TUBE

Price €8.63
# 16400-MGC-D22 i

THROTTLE BODY ASSY (GQ8FA A)

Price €1,373.12
# 16401-MGC-D22 i

THROTTLE BODY ASSY

Price €1,074.82
# 16430-MFJ-D01

MOTOR ASSY

Price €284.88
# 16431-MFJ-D01

PLATE, JOINT

Price €12.46
# 16432-MFG-D01

JOINT, IDLE AIR CONTROL VALVE

Price €23.59
# 16433-HN8-A61 i

SCREW, TORX

Price €6.94
# 16433-MEW-921

PLATE, IDLE AIR CONTROL VALVE

Price €24.89
# 16434-MFJ-D01

O-RING

Price €7.34
# 16435-MFJ-D01

O-RING, 178X19

Price €7.34
# 16440-MGC-003

TUBE COMP, 9X330

Price €32.74
# 16441-MFP-003

TUBE

Price €26.88
# 16472-KPC-D50

RING, SEAL

Price €6.80
# 16610-MGC-D21

PIPE A, FUEL

Price €106.30
# 16620-MGC-D21

PIPE, FUEL (B)

Price €106.30
# 16630-MGC-003

T-JOINT, FUEL

Price €78.88
# 17201-MCZ-003

JOINT, FOUR WAY

Price €20.62
# 43514-MN9-006 i

CLAMP, MASTER CYLINDER OIL HOSE

Price €20.35
# 91301-PLC-000

O-RING, 747X36

Price €5.29
# 91301-GGL-J01

O-RING, 63X22

Price €21.91
# 90021-MGZ-D02 i

BOLT, SHOULDER

Price €6.58
# 95005-3504020 i

TUBE, 35X40 (95005-35001-20M)

Price €1.63
# 95005-3511020 i

TUBE, 35X110 (95005-35001-20M)

Price €2.62
Contact us
# 16450-MGC-D21

INJECTOR ASSY, FUEL

Price €395.48
