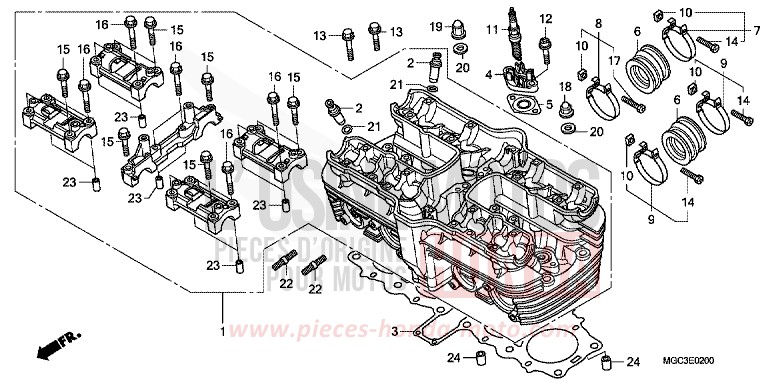

CYLINDER HEAD for CB1100 ABS CANDY GLORY RED-U (R101) from 2013

CYLINDER HEAD for CB1100 ABS CANDY GLORY RED-U (R101) from 2013
Reference
Product name
#1 12010-MGC-000

HEAD ASSY, CYLINDER

Price €3,663.88
#2 12204-MGC-305

GUIDE, VALVE (OS)

Price €44.87
#3 12251-MGC-003

GASKET, CYLINDER HEAD

Price €189.40
#4 12511-MGC-000

COVER, PLUG HOLE

Price €62.04
#5 12521-MGC-003

GASKET, PLUG HOLE COVER

Price €12.42
#6 16210-MGC-000

INSULATOR, THROTTLE BODY

Price €87.97
#7 16219-MGC-J80

BAND, INSULATOR (2,3)

Price €16.07
#8 16217-MGC-000

BAND, INSULATOR (2,3)

Price €23.95
#9 16218-MGC-J80

BAND, INSULATOR (1,4)

Price €20.86
#10 16222-MV4-300

NUT, SQUARE, 5MM

Price €4.88
#11 31908-MGC-003

PLUG, SPARK (LMAR8A-9S)

Price €39.20
#12 90002-MGC-000

BOLT, FLANGE TORX, 6X25

Price €7.07
#13 90004-GHB-710 i

BOLT, FLANGE, 6X40 (NSHF)

Price €5.59
#17 90023-MM5-000

BOLT, RECESSED, 5X28

Price €5.21
#15 90016-KT7-000

BOLT, FLANGE, 6X37

Price €5.21
#16 90018-425-000

BOLT, FLANGE, 6X48

Price €6.82
#18 90231-MGC-000

NUT, CAP, 9MM

Price €7.19
#19 90232-MGC-000

NUT, CAP, 9MM

Price €7.58
#20 90411-MGC-000

WASHER, SEALING, 9MM

Price €12.07
#21 91301-200-000 i

O-RING, 10X16

Price €5.70
#22 92900-080280E

BOLT, STUD, 8X28

Price €2.99
#23 94301-08200 i

DOWEL PIN, 8X20

Price €2.05
#24 94301-10160 i

DOWEL PIN, 10X16

Price €2.38
# 16197-MGC-003

TUBE

Price €8.63
# 16400-MGC-D22 i

THROTTLE BODY ASSY (GQ8FA A)

Price €1,373.12
# 16401-MGC-D22 i

THROTTLE BODY ASSY

Price €1,074.82
# 16430-MFJ-D01

MOTOR ASSY

Price €284.88
# 16431-MFJ-D01

PLATE, JOINT

Price €12.46
# 16432-MFG-D01

JOINT, IDLE AIR CONTROL VALVE

Price €23.59
# 16433-HN8-A61 i

SCREW, TORX

Price €6.94
# 16433-MEW-921

PLATE, IDLE AIR CONTROL VALVE

Price €24.89
# 16434-MFJ-D01

O-RING

Price €7.34
# 16435-MFJ-D01

O-RING, 178X19

Price €7.34
# 16440-MGC-003

TUBE COMP, 9X330

Price €32.74
# 16441-MFP-003

TUBE

Price €26.88
# 16472-KPC-D50

RING, SEAL

Price €6.80
# 16610-MGC-D21

PIPE A, FUEL

Price €106.30
# 16620-MGC-D21

PIPE, FUEL (B)

Price €106.30
# 16630-MGC-003

T-JOINT, FUEL

Price €78.88
# 17201-MCZ-003

JOINT, FOUR WAY

Price €20.62
# 43514-MN9-006 i

CLAMP, MASTER CYLINDER OIL HOSE

Price €20.35
# 91301-PLC-000

O-RING, 747X36

Price €5.29
# 91301-GGL-J01

O-RING, 63X22

Price €21.91
# 90021-MGZ-D02 i

BOLT, SHOULDER

Price €6.58
# 95005-3504020 i

TUBE, 35X40 (95005-35001-20M)

Price €1.63
# 95005-3511020 i

TUBE, 35X110 (95005-35001-20M)

Price €2.62
Contact us
# 16450-MGC-D21

INJECTOR ASSY, FUEL

Price €395.48
