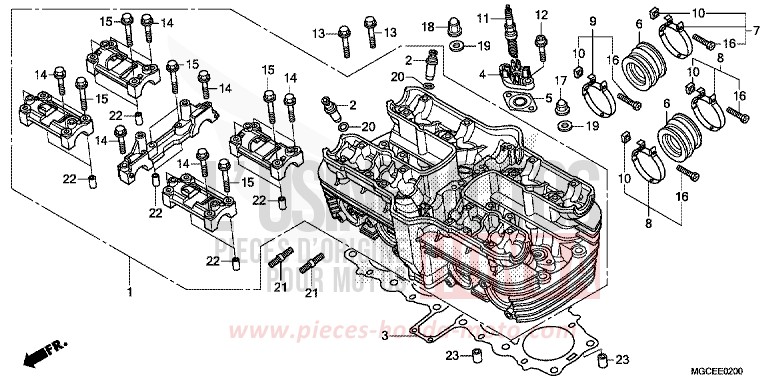

CYLINDER HEAD for CB1100 CANDY ALIZARIN RED (R345) from 2014

CYLINDER HEAD for CB1100 CANDY ALIZARIN RED (R345) from 2014
Reference
Product name
#1 12010-MGC-000

HEAD ASSY, CYLINDER

Price €3,663.88
#2 12204-MGC-305

GUIDE, VALVE (OS)

Price €44.87
#3 12251-MGC-003

GASKET, CYLINDER HEAD

Price €189.40
#4 12511-MGC-000

COVER, PLUG HOLE

Price €62.04
#5 12521-MGC-003

GASKET, PLUG HOLE COVER

Price €12.42
#6 16210-MGC-000

INSULATOR, THROTTLE BODY

Price €87.97
#7 16217-MGC-000

BAND, INSULATOR (2,3)

Price €23.95
#8 16218-MGC-J80

BAND, INSULATOR (1,4)

Price €20.86
#9 16219-MGC-J80

BAND, INSULATOR (2,3)

Price €16.07
#10 16222-MV4-300

NUT, SQUARE, 5MM

Price €4.88
#11 31908-MGC-003

PLUG, SPARK (LMAR8A-9S)

Price €39.20
#12 90002-MGC-000

BOLT, FLANGE TORX, 6X25

Price €7.07
#13 90004-GHB-710 i

BOLT, FLANGE, 6X40 (NSHF)

Price €5.59
#14 90016-KT7-000

BOLT, FLANGE, 6X37

Price €5.21
#15 90018-425-000

BOLT, FLANGE, 6X48

Price €6.82
#16 90023-MM5-000

BOLT, RECESSED, 5X28

Price €5.21
#17 90231-MGC-000

NUT, CAP, 9MM

Price €7.19
#18 90232-MGC-000

NUT, CAP, 9MM

Price €7.58
#19 90411-MGC-000

WASHER, SEALING, 9MM

Price €12.07
#20 91301-200-000 i

O-RING, 10X16

Price €5.70
#21 92900-080280E

BOLT, STUD, 8X28

Price €2.99
#22 94301-08200 i

DOWEL PIN, 8X20

Price €2.05
#23 94301-10160 i

DOWEL PIN, 10X16

Price €2.38
