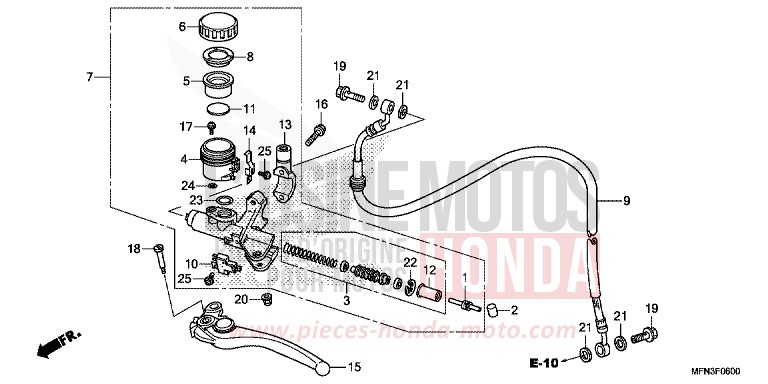

CLUTCH MASTER CYLINDER for CB1000R PEARL SIENA RED (R320X) from 2015

CLUTCH MASTER CYLINDER for CB1000R PEARL SIENA RED (R320X) from 2015
Reference
Product name
#1 22884-MAT-E01

ROD, PUSH

Price €53.72
#2 22885-MB0-006 i

BUSH

Price €19.03
#3 22886-MAT-E01

PISTON SET, MASTER CYLINDER

Price €127.26
#4 22887-MFN-D01

CUP COMP, OIL

Price €33.86
#5 22888-MR7-006

DIAPHRAGM

Price €31.32
#6 22889-MR7-006

CAP, CLUTCH OIL CUP

Price €47.17
#7 22890-MFN-D01

CYLINDER SUB ASSY, CLUTCH MASTER

Price €653.78
#8 22890-MR7-006

PLATE, DIAPHRAGM

Price €30.28
#9 22900-MFN-D61

HOSE COMP, CLUTCH

Price €148.20
#10 35330-MB0-003 i

SWITCH ASSY, CLUTCH

Price €39.18
#11 43523-MFL-006

FLOAT

Price €8.23
#12 45504-MAT-E01

BOOT COMP

Price €18.06
#13 45517-MFN-D01

HOLDER, MASTER CYLINDER

Price €39.71
#14 45535-MR8-901

PLATE, STOP

Price €11.82
#15 53180-MCF-D62 i

LEVER ASSY, L HANDLE

Price €71.47
#16 90101-MBZ-G00

BOLT, FLANGE, 6X22

Price €5.21
#17 90101-MR7-006

SCREW, TRIPLE, 4X11

Price €6.52
#18 90114-MA5-671 i

BOLT, HANDLE LEVER PIVOT

Price €13.19
#19 90145-MS9-612 i

BOLT, OIL, 10X22 (SAGA)

Price €16.85
#20 90201-415-000

NUT, CAP, 6MM

Price €7.06
#21 90545-300-000 i

WASHER, OIL BOLT

Price €5.30
#22 90651-MA5-671 i

CIRCLIP

Price €7.63
#23 91212-422-006 i

O-RING, 148X24

Price €6.53
#24 91355-MG9-006 i

O-RING

Price €6.53
#25 93893-0401217 i

SCREW-WASHER, 4X12

Price €1.08
