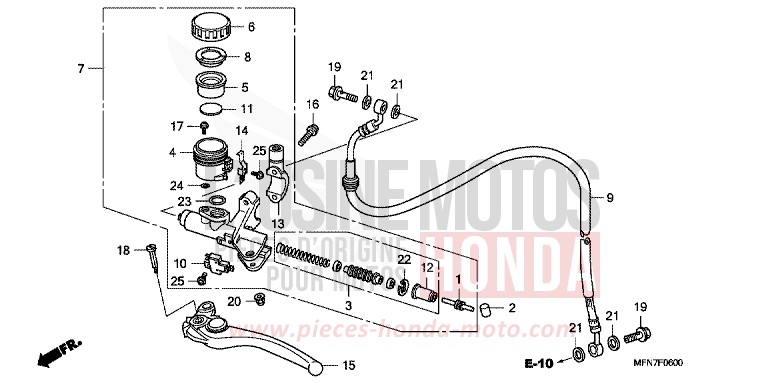

CLUTCH MASTER CYLINDER for CB1000R PEARL SIENA RED (R320) from 2010

CLUTCH MASTER CYLINDER for CB1000R PEARL SIENA RED (R320) from 2010
Reference
Product name
#1 22884-MAT-E01

ROD, PUSH

Price €36.79
#2 22885-MB0-006

BUSH

Price €13.84
#3 22886-MAT-E01

PISTON SET, MASTER CYLINDER

Price €117.17
#4 22887-MFN-D01

CUP COMP, OIL

Price €20.92
#5 22888-MR7-006

DIAPHRAGM

Price €25.18
#6 22889-MR7-006

CAP, CLUTCH OIL CUP

Price €50.87
#7 22890-MFN-D01

CYLINDER SUB ASSY, CLUTCH MASTER

Price €518.34
#8 22890-MR7-006

PLATE, DIAPHRAGM

Price €23.54
#9 22900-MFN-D01

HOSE COMP, CLUTCH

Price €86.65
#10 35330-MB0-003

SWITCH ASSY, CLUTCH

Price €36.64
#11 43523-MFL-006

FLOAT

Price €6.43
#12 45504-MAT-E01

BOOT COMP

Price €15.38
#13 45517-MFN-D01

HOLDER, MASTER CYLINDER

Price €33.49
#14 45535-MR8-901

PLATE, STOP

Price €9.34
#15 53180-MCF-D61

LEVER ASSY, L HANDLE

Price €75.06
#16 90101-MBZ-G00

BOLT, FLANGE, 6X22

Price €3.98
#17 90101-MR7-006

SCREW, TRIPLE, 4X11

Price €4.03
#18 90114-MA5-671

BOLT, HANDLE LEVER PIVOT

Price €11.93
#19 90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

Price €13.14
#20 90201-415-000

NUT, CAP, 6MM

Price €5.94
#21 90545-300-000

WASHER, OIL BOLT

Price €6.41
#22 90651-MA5-671

CIRCLIP

Price €5.83
#23 91212-422-006

O-RING, 148X24

Price €5.78
#24 91355-MG9-006

O-RING

Price €5.52
#25 93893-0401217

SCREW-WASHER, 4X12

Price €1.06
