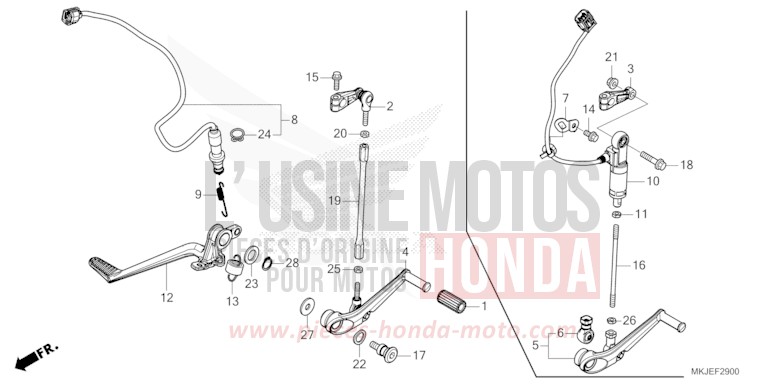

PEDAL for CB1000R MAT JEANS BLUE MATALLIC (PB417) from 2023

PEDAL for CB1000R MAT JEANS BLUE MATALLIC (PB417) from 2023
Reference
Product name
#1 24705-MR7-000

RUBBER, GEAR CHANGE PEDAL

Price €11.00
#3 24711-MKF-D60

ARM, GEAR CHANGE

Price €71.57
#5 24720-MKJ-E60

PEDAL COMP, GEAR CHANGE

Price €77.23
#6 24724-MBW-D21

COVER, DUST

Price €19.44
#7 32214-MKJ-D10

STAY, STROKE SENSOR

Price €11.58
#8 35350-MKJ-E51

SWITCH ASSY, RR STOP

Price €101.36
#9 35357-MCH-000

SPRING, STOP SWITCH

Price €6.30
#10 36390-MKJ-E61

SENSOR ASSY, STROKE

Price €1,829.04
#11 45423-KA4-700

NUT, HEX, 6MM (LEFT HAND THREAD)

Price €4.93
#12 46500-MKJ-E60

PEDAL COMP, RR BRAKE

Price €173.44
#13 46515-MKJ-E50

SPRING ASSY, BRAKE PEDAL

Price €16.15
#14 90026-GHB-620

BOLT, FLANGE, 6X12 (S-NSHF)

Price €4.73
#15 90030-GHB-660

BOLT, FLANGE, 6X20

Price €6.76
#16 90065-ML0-900

BOLT, TIE ROD

Price €12.35
#17 90113-MCF-000

BOLT, CHANGE PIVOT

Price €12.73
#18 90115-MKF-D60

BOLT, FLANGE, 7X30

Price €7.50
#21 90202-KV3-000

NUT, FLANGE, 7MM

Price €2.72
#22 90505-MBW-000

WASHER, CHANGE PEDAL WAVE

Price €5.17
#23 90557-230-000

WASHER, 152X25

Price €6.56
#24 90601-KAF-003

CLIP, SWITCH COVER

Price €4.34
#26 94002-060800S

NUT, HEX, 6MM

Price €0.84
#27 94103-08700

WASHER, PLAIN, 8MM

Price €0.62
#28 94511-15000

CIRCLIP, EXTERNAL, 15MM

Price €0.91
