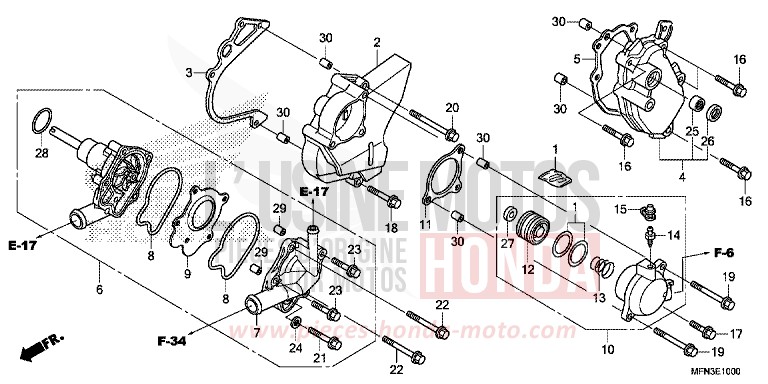

WATER PUMP for CB1000R HYPER RED (R348B) from 2015

WATER PUMP for CB1000R HYPER RED (R348B) from 2015
Reference
Product name
#1 04121-MEJ-305 i

O-RING SET

Price €13.28
#2 11350-MFN-D00

COVER COMP, L RR

Price €233.52
#3 11355-MFA-D01 i

PLATE, DRIVE CHAIN GUIDE

Price €19.15
#4 11370-MEL-D20

COVER COMP, CHANGE

Price €93.92
#5 11372-MGJ-D00 i

GASKET, CHANGE COVER

Price €12.12
#6 19200-MEL-D20

PUMP COMP, WATER

Price €529.73
#7 19221-MEL-D20

COVER, WATER PUMP

Price €160.62
#8 19226-MEL-300

GASKET, WATER PUMP

Price €10.51
#9 19231-MEL-300

PLATE, WATER PUMP

Price €21.24
#10 22860-MEJ-003

CYLINDER ASSY, CLUTCH SLAVE

Price €119.52
#11 22862-MGJ-D00 i

GASKET, SLAVE CYLINDER

Price €10.22
#12 22863-MEJ-003

PISTON, SLAVE CYLINDER

Price €71.26
#13 22864-MEJ-003

SPRING, SLAVE CYLINDER

Price €18.08
#14 22866-MF2-711

SCREW, BLEEDER

Price €12.22
#15 43353-461-771 i

CAP, BLEEDER

Price €9.12
#16 90006-MFN-D00

BOLT, FLANGE, 6X28

Price €7.19
#17 90010-GHB-650

BOLT, FLANGE, 6X20

Price €5.21
#18 90010-GHB-710 i

BOLT, FLANGE, 6X40

Price €1.74
#19 90010-GHB-760

BOLT, FLANGE, 6X65

Price €5.83
#20 90010-GHB-780

BOLT, FLANGE, 6X75

Price €5.96
#21 90017-883-000

BOLT, FLANGE, 6X32 (CT200)

Price €2.86
#22 90021-MFA-D00

BOLT, FLANGE, 6X45

Price €5.59
#23 90121-MV9-670 i

BOLT, FLANGE, 6X25

Price €1.99
#24 90463-ML7-000 i

WASHER, SEALING, 65MM

Price €4.62
#25 91101-121-691

BEARING, NEEDLE, 14MM (TOYO)

Price €41.87
#26 91203-KK3-830 i

OIL SEAL, 14X22X5

Price €4.19
#27 91209-MB0-003 i

OIL SEAL, 8X18X5

Price €5.14
#28 91302-MB0-013 i

O-RING, 3295X262 (ARAI)

Price €6.30
#29 94301-08100 i

DOWEL PIN, 8X10

Price €1.81
#30 94301-08140 i

DOWEL PIN, 8X14

Price €2.05
