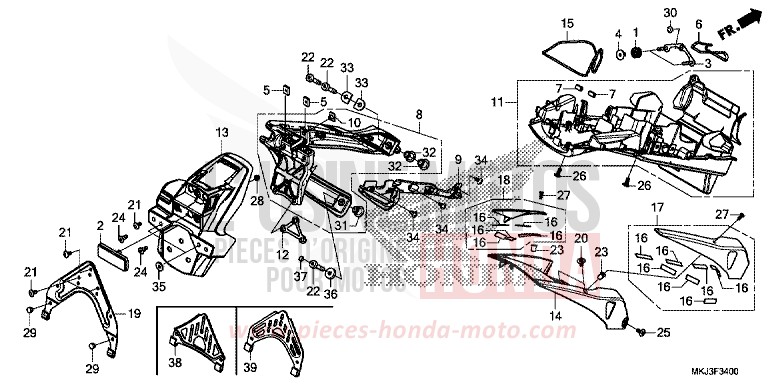

REAR FENDER for CB1000R GRAPHITE BLACK (NHB01) from 2019

REAR FENDER for CB1000R GRAPHITE BLACK (NHB01) from 2019
Reference
Product name
#1 33705-KW7-900

RUBBER A, TAILLIGHT MOUNTING

Price €17.77
#2 33741-MS6-921

REFLECTOR, REFLEX (STANLEY)

Price €38.33
#3 50203-MKJ-D00

STAY, REGULATE RECTIFIER

Price €27.71
#4 61104-428-730

COLLAR, FR FENDER (BLACK)

Price €3.96
#5 61304-162-013

NUT, HEADLIGHT SETTING

Price €5.27
#6 64111-181-000

BAND, FR NUMBER PLATE

Price €14.90
#7 64121-MEJ-000

RUBBER, PROTECTOR

Price €3.61
#8 80101-MKJ-D00

STAY, RR FENDER

Price €292.58
#9 80102-MKJ-D00

COVER, LICENSE LIGHT CORD

Price €57.53
#10 80104-KJ2-000

NUT, RR FENDER

Price €5.10
#11 80105-MKJ-D00

FENDER COMP B, RR

Price €265.86
#12 80107-MKJ-D00

STAY, NUMBER BRACKET

Price €31.30
#13 80110-MKJ-D00ZA

FENDER SET D (WL) TYPE1 (TYPE1 )

Price €126.35
#14 80120-MKJ-D00

FENDER C, RR

Price €91.45
#15 80123-GN5-900

BAND, TOOL

Price €8.24
#19 84701-MKJ-D00

BRACKET, NUMBER PLATE

Price €128.06
#20 90103-MKE-A00

BOLT, SPECIAL, 6MM

Price €5.88
#21 90106-MAV-000

SCREW, PAN, 6X12

Price €4.93
#22 90108-MKJ-D40

BOLT, TORX, 8X40

Price €10.07
#24 90113-KEY-900

SCREW, PAN, 6X17

Price €6.26
#25 90114-MKJ-D00

BOLT, SPECIAL, 6X15

Price €6.38
#26 90116-MFL-D20

SCREW, SPECIAL, 6X16

Price €8.80
#28 90301-MG8-000

NUT, FLANGE, 5MM (FUSE RASHI)

Price €4.42
#29 90572-KV3-300

RUBBER, SEPARATOR MOUNTING

Price €6.12
#30 90680-692-000

PLUG, HOLE, 10MM

Price €9.26
#31 91501-MKJ-D00

COLLAR A, RR FENDER

Price €12.30
#32 91502-MKJ-D00

COLLAR B, RR FENDER

Price €12.30
#33 91505-MKJ-D00

WASHER, RR FENDER

Price €11.77
#34 93903-25280

SCREW, TAPPING, 5X12

Price €0.62
#36 94103-08800

WASHER, PLAIN, 8MM

Price €0.72
#38 84701-MKJ-A00

BRACKET, NUMBER PLATE

Price €58.20
#39 84701-MKJ-T00

BRACKET, NUMBER PLATE

Price €68.32
# 24705-MR7-000

RUBBER, GEAR CHANGE PEDAL

Price €11.00
# 24710-MEE-000

ARM COMP, GEAR CHANGE

Price €160.45
# 24720-MFJ-D01

PEDAL COMP, GEAR CHANGE

Price €146.11
# 35350-MKJ-D01

SWITCH ASSY, RR STOP

Price €89.54
# 35357-MCH-000

SPRING, STOP SWITCH

Price €6.30
# 46500-MFN-D00

PEDAL COMP, RR BRAKE

Price €126.48
# 46514-MFN-D00

SPRING, BRAKE PEDAL

Price €3.62
# 90030-GHB-660

BOLT, FLANGE, 6X20

Price €6.76
# 90113-MCF-000

BOLT, CHANGE PIVOT

Price €12.73
# 90165-MFN-D00

BAR, CHANGE

Price €19.66
# 90201-700-000

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

Price €0.85
# 90505-MBW-000

WASHER, CHANGE PEDAL WAVE

Price €5.17
# 90557-230-000

WASHER, 152X25

Price €6.56
# 90601-KAF-003

CLIP, SWITCH COVER

Price €4.34
# 94001-060200S

NUT, HEX, 6MM

Price €1.16
# 94103-08700

WASHER, PLAIN, 8MM

Price €0.62
# 94511-15000

CIRCLIP, EXTERNAL, 15MM

Price €0.91
