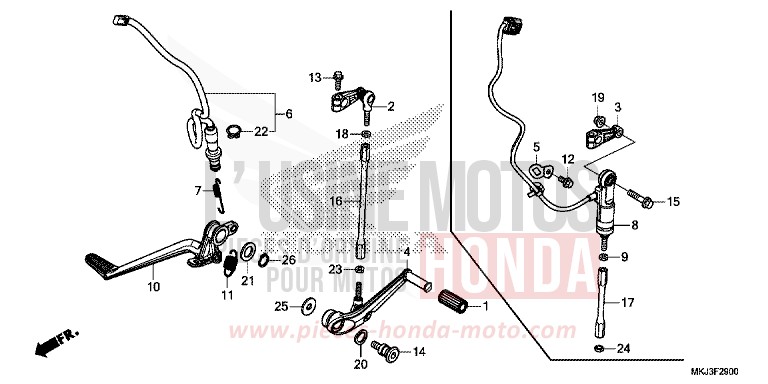

PEDAL for CB1000R CANDY CHROMOSPHERE RED (R381) from 2018

PEDAL for CB1000R CANDY CHROMOSPHERE RED (R381) from 2018
Reference
Product name
#1 24705-MR7-000

RUBBER, GEAR CHANGE PEDAL

Price €11.00
#3 24711-MKF-D60

ARM, GEAR CHANGE

Price €71.57
#4 24720-MFJ-D01

PEDAL COMP, GEAR CHANGE

Price €146.11
#5 32214-MKJ-D10

STAY, STROKE SENSOR

Price €11.58
#6 35350-MKJ-D01

SWITCH ASSY, RR STOP

Price €89.54
#7 35357-MCH-000

SPRING, STOP SWITCH

Price €6.30
#8 36390-MKJ-D11

SENSOR ASSY, STROKE

Price €1,829.04
#9 45423-KA4-700

NUT, HEX, 6MM (LEFT HAND THREAD)

Price €4.93
#10 46500-MFN-D00

PEDAL COMP, RR BRAKE

Price €126.48
#11 46514-MFN-D00

SPRING, BRAKE PEDAL

Price €3.62
#12 90026-GHB-620

BOLT, FLANGE, 6X12 (S-NSHF)

Price €4.73
#13 90030-GHB-660

BOLT, FLANGE, 6X20

Price €6.76
#14 90113-MCF-000

BOLT, CHANGE PIVOT

Price €12.73
#15 90115-MKF-D60

BOLT, FLANGE, 7X30

Price €7.50
#17 90165-MKJ-D10

BAR, CHANGE

Price €29.86
#19 90202-KV3-000

NUT, FLANGE, 7MM

Price €2.72
#20 90505-MBW-000

WASHER, CHANGE PEDAL WAVE

Price €5.17
#21 90557-230-000

WASHER, 152X25

Price €6.56
#22 90601-KAF-003

CLIP, SWITCH COVER

Price €4.34
#24 94002-060800S

NUT, HEX, 6MM

Price €0.84
#25 94103-08700

WASHER, PLAIN, 8MM

Price €0.62
#26 94511-15000

CIRCLIP, EXTERNAL, 15MM

Price €0.91
