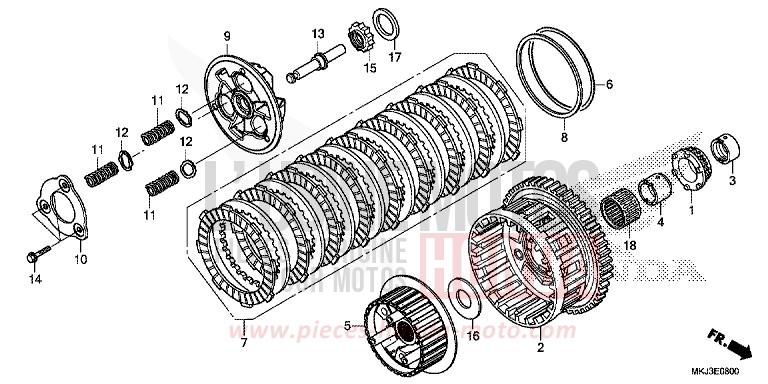

CLUTCH for CB1000R CANDY CHROMOSPHERE RED (R381) from 2018

CLUTCH for CB1000R CANDY CHROMOSPHERE RED (R381) from 2018
Reference
Product name
#1 15131-MEL-003

SPROCKET, OIL PUMP DRIVE (26T)

Price €89.69
#2 22100-MKJ-D00

OUTER COMP A, CLUTCH (77T) (BLUE)

Price €393.94
#2 22200-MKJ-D00

OUTER COMP B, CLUTCH (77T) (YELLOW)

Price €393.94
#3 22116-MEL-000

COLLAR, OIL PUMP SPROCKET

Price €38.54
#4 22117-MEL-D20

GUIDE A, CLUTCH OUTER (HOLE NOTHING)

Price €41.36
#4 22118-MEL-D20

GUIDE B, CLUTCH OUTER (2MM HOLE)

Price €44.53
#5 22121-MKJ-D01

CENTER, CLUTCH

Price €95.02
#6 22125-HP6-A00

SEAT, JUDDER SPRING

Price €6.77
#7 22210-MKF-D40

DISK SET, CLUTCH

Price €181.07
#8 22325-MJP-G51

SPRING, JUDDER

Price €60.68
#9 22350-MKJ-D01

PLATE COMP, CLUTCH PRESSURE

Price €63.78
#10 22361-MJP-G51

PLATE, SETTING

Price €32.84
#11 22401-MKJ-D00

SPRING, CLUTCH

Price €12.30
#12 22425-MKF-D41

SEAT, CLUTCH SPRING

Price €15.83
#13 22847-MGP-D60

PIN, CLUTCH LIFTER

Price €67.04
#14 90050-MKF-D41

BOLT, FLANGE, 6X45

Price €7.58
#15 90231-MS2-610

NUT, LOCK, 25MM

Price €14.48
#16 90401-MS2-610

WASHER, THRUST, 282X56X2

Price €14.21
#17 90407-MFL-000

WASHER, 251X37X32

Price €11.77
#18 91101-MFL-881

BEARING A, NEEDLE, 35X41X278 (RED)

Price €27.85
#18 91102-MFL-881

BEARING B, NEEDLE, 35X41X278 (WHITE)

Price €27.85
#18 91103-MKJ-D01

BEARING C, NEEDLE, 35X41X278 (YELLOW)

Price €36.97
