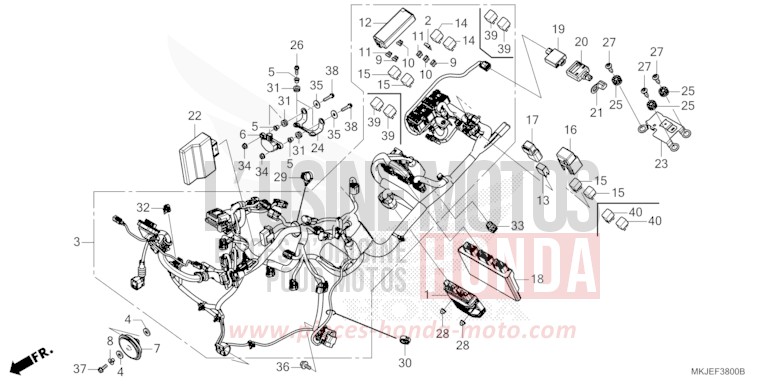

WIRE HARNESS for CB1000R BORDEAUX RED METALLIC (R337) from 2023

WIRE HARNESS for CB1000R BORDEAUX RED METALLIC (R337) from 2023
Reference
Product name
#1 31600-MKN-D51

RECTIFIER ASSY, REGULATE

Price €275.59
#2 31730-MAS-601

DIODE ASSY, THREE WAY (SUMITOMO)

Price €48.62
#3 32100-MKJ-E50

HARNESS, WIRE

Price €1,096.70
#4 33714-KL3-620

RUBBER, TAILLIGHT BRACKET

Price €6.62
#5 33715-GB0-900

COLLAR, TAILLIGHT SETTING

Price €4.56
#6 35160-MGS-D31

SENSOR ASSY, BANK ANGLE

Price €328.60
#7 38110-KPP-T01

HORN COMP (HIGH)

Price €48.10
#8 38117-KFE-701

COLLAR, HORN SETTING

Price €18.05
#9 38221-SNA-A31

FUSE, BLADE (75A)

Price €5.34
#10 38221-SNA-A41

FUSE, BLADE (10A)

Price €5.69
#11 38221-SNA-A51

FUSE, BLADE (15A)

Price €5.83
#12 38255-MKJ-E51

COVER COMP, UPPER

Price €30.44
#13 38501-MCS-G01

RELAY COMP, POWER (MICRO ISO 4P)

Price €26.11
#14 38501-MEL-003

RELAY ASSY, POWER (MICRO ISO 4P)

Price €20.95
#15 38501-MKR-D11

RELAY COMP, POWER (MICRO ISO 4P) (PANASONIC)

Price €25.01
#16 38506-KZZ-900

COVER, RELAY (2P)

Price €7.24
#17 38506-MCS-G00

SUSPENSION, POWER RELAY

Price €17.83
#18 38770-MKJ-E51

PGM-FI UNIT

Price €1,074.22
#19 38940-MKR-D11

CHARGER UNIT, USB (TYPE-C)

Price €101.62
#20 38941-MLA-A00

COVER, USB CHARGER (TYPE-C)

Price €22.21
#21 38942-MLA-A00

CAP, USB CHARGER COVER

Price €9.20
#22 38950-MKJ-E51

CONTROL UNIT, BODY

Price €503.14
#23 39571-MKJ-F60

STAY COMP (USB)

Price €48.94
#24 50355-MKJ-D00

STAY, BANK ANGLE SENSOR

Price €22.27
#25 84703-425-000

RUBBER, TAILLIGHT MOUNTING

Price €9.74
#26 90020-GHB-640

BOLT, FLANGE, 6X16

Price €5.57
#27 90102-MKH-D00

SCREW, SPECIAL TAPPING, 5X14

Price €7.34
#28 90308-MT8-000

NUT, CAP, 6MM

Price €4.84
#29 90652-HC4-003

CLAMP, HARNESS

Price €9.00
#30 90690-MEF-800

CLAMP, HARNESS

Price €4.45
#31 90851-961-000

RUBBER, TAILLIGHT MOUNTING

Price €13.79
#32 91535-TA0-003

CLIP, COUPLER (DARK BROWN)

Price €8.64
#33 91771-MKK-H11

CAP, DUMMY (6P) (RED)

Price €13.45
#34 94050-06080

NUT, FLANGE, 6MM

Price €1.18
#35 94103-06800

WASHER, PLAIN, 6MM

Price €0.77
#36 95701-0601608

BOLT, FLANGE, 6X16

Price €1.06
#37 95701-0601807

BOLT, FLANGE, 6X18

Price €0.94
#38 96001-0602500

BOLT, FLANGE, 6X25

Price €1.48
