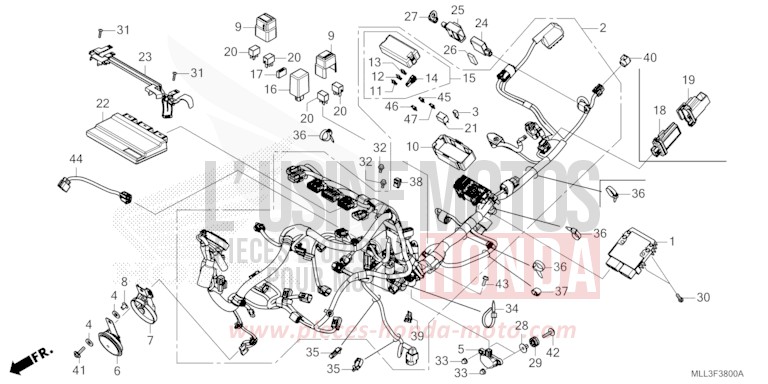

WIRE HARNESS for CB1000F "Big One" PEARL GLARE WHITE (NHB53) from 2025

WIRE HARNESS for CB1000F "Big One" PEARL GLARE WHITE (NHB53) from 2025
Reference
Product name
#1 31600-MKN-D51

ASSY. RECTIFICATEUR-REGULATOR

Price €245.41
#2 32100-MLL-D00 i

HARNESS, WIRE

Price €1,065.82
#3 32146-S84-003

CONNECTION, DIODE (2P) (3A)

Price €24.08
#4 33714-KL3-620

RUBBER OF SUPPORT OF REAR LIGHT

Price €7.60
#5 35160-MGS-D31

SENSOREINHEIT, BOESCHUNGSWINKEL

Price €314.98
#6 38110-MGZ-J01

HORN COMP. (TOP)

Price €37.60
#7 38111-MLL-D00

GUARD, HORN HEAT

Price €28.74
#8 38117-MGZ-J00

RING, ADJUSTMENT KLAXON

Price €3.58
#9 38200-K0B-T00

SUSPENSION, ETUI OF RELAIS (2P)

Price €9.31
#10 38202-MLL-D00

SUSPENSION, FUSE BOX

Price €26.50
#45 38221-SNA-A31

FUSIBLE OF LAME (7.5A)

Price €6.85
#46 38221-SNA-A41

FUSIBLE OF LAME (10A)

Price €6.85
#47 38221-SNA-A51

FUSIBLE OF LAME (15A)

Price €6.85
#14 38235-SNA-A01

EXTRACTEUR, MINI FUSIBLE

Price €6.65
#15 38255-MLL-D01

COVER ASSY, POWER BOX

Price €41.22
#16 38301-MLL-D01 i

TURN SIGNAL RELAY COMP. (LED) (ESS)

Price €111.48
#17 38306-KK4-000

RUBBER D'DAMPER OF CENTER CLIGNOTANTE (MITSUBA)

Price €9.01
#18 38351-K1B-D24 i

UNIT BLUETOOTH

Price €271.03
#19 38351-MLL-D00

CUSHION, BLUETOOTH UNIT

Price €20.22
#20 38501-KSS-B31

RELAY COMP, POWER (MICRO ISO 4P)

Price €14.53
#21 38501-MKP-DN1 i

POWER RELAY COMP. (MICRO ISO 4P)

Price €7.66
#22 38770-MLL-D01

PGM-FI UNIT

Price €2,324.35
#23 38771-MLL-D00

PLATE, PGM-FI UNIT SETTING

Price €15.24
#24 38940-MKR-D11

CHARGEUR, USB (TYPE-C)

Price €115.32
#25 38941-MLA-A00

COVER, CHARGEUR USB (TYPE-C)

Price €19.22
#26 38941-MLL-D00

CUSHION, USB UNIT, 14X28

Price €11.88
#27 38942-MLA-A00

CAP, COVER CHARGEUR USB

Price €8.86
#28 61104-428-010 i

BAND OF GUARD-BOUE FRONT (WHITE)

Price €12.07
#29 84703-425-000 i

MOUNTING RUBBER, SCHLUSS- LICHT

Price €10.22
#30 90021-GHB-670

FLANGE BOLT, 6X22

Price €5.83
#31 90105-MFJ-D00

SELF-TAPPING SCREW, 4X18 (DELTA PT)

Price €6.94
#32 90112-GC3-000

BOLT, SPECIAL, 5MM

Price €5.96
#33 90201-415-000

NUT OF CAP, 6MM

Price €7.06
#34 90651-KV6-003 i

STRIPE, CABLE 165MM (BLACK)

Price €9.78
#35 90652-HC4-003 i

CLIP OF HARNESS

Price €8.45
#36 90652-KT1-771 i

WIRE BAND (BLACK)

Price €9.29
#37 90652-MKH-D20

BANDE RUBBER (50)

Price €7.19
#38 91536-STK-003

CLIP, RELAY HOLDER (NATURAL)

Price €11.84
#39 91565-S3Y-003

CLIP D'COUPLING (GRIS)

Price €6.83
#39 91565-K29-V81

CLIP, COUPLER

Price €4.44
#40 91771-MKK-H11

CAP, FAUX (6P) (ROUGE)

Price €24.54
#41 93404-0602507 i

BOLT WITH WASHER, 6X25

Price €1.25
#42 93404-0602808 i

BOLT-WASHER, 6X28

Price €1.50
#43 95701-0601608 i

FLANGE BOLT, 6X16

Price €1.08
#44 32104-MKF-D40

SUB HARNESS, THROTTLE BY WIRE

Price €61.42
#45 38221-K2S-V01

FUSE, BLADE (75A)

Price €4.70
#46 38221-K2C-V11

FUSE, BLADE (10A)

Price €1.39
#47 38221-K2S-V11

FUSE, BLADE (15A)

Price €4.70
